Product Detail
Inorganic magnesium oxysulfide mechanized cleanroom panel for buyers seeking stable mineral-core partitions with a clean coated-steel finish.
| Product family | Mechanized cleanroom sandwich panel |
| Production method | Continuous machine production with inorganic magnesium oxysulfide core |
| Core material | Magnesium oxysulfide inorganic core |
| Typical thickness | 50, 75 or 100 mm; project-specific thickness by review |
| Effective width | 950, 980, 1150 or 1180 mm |

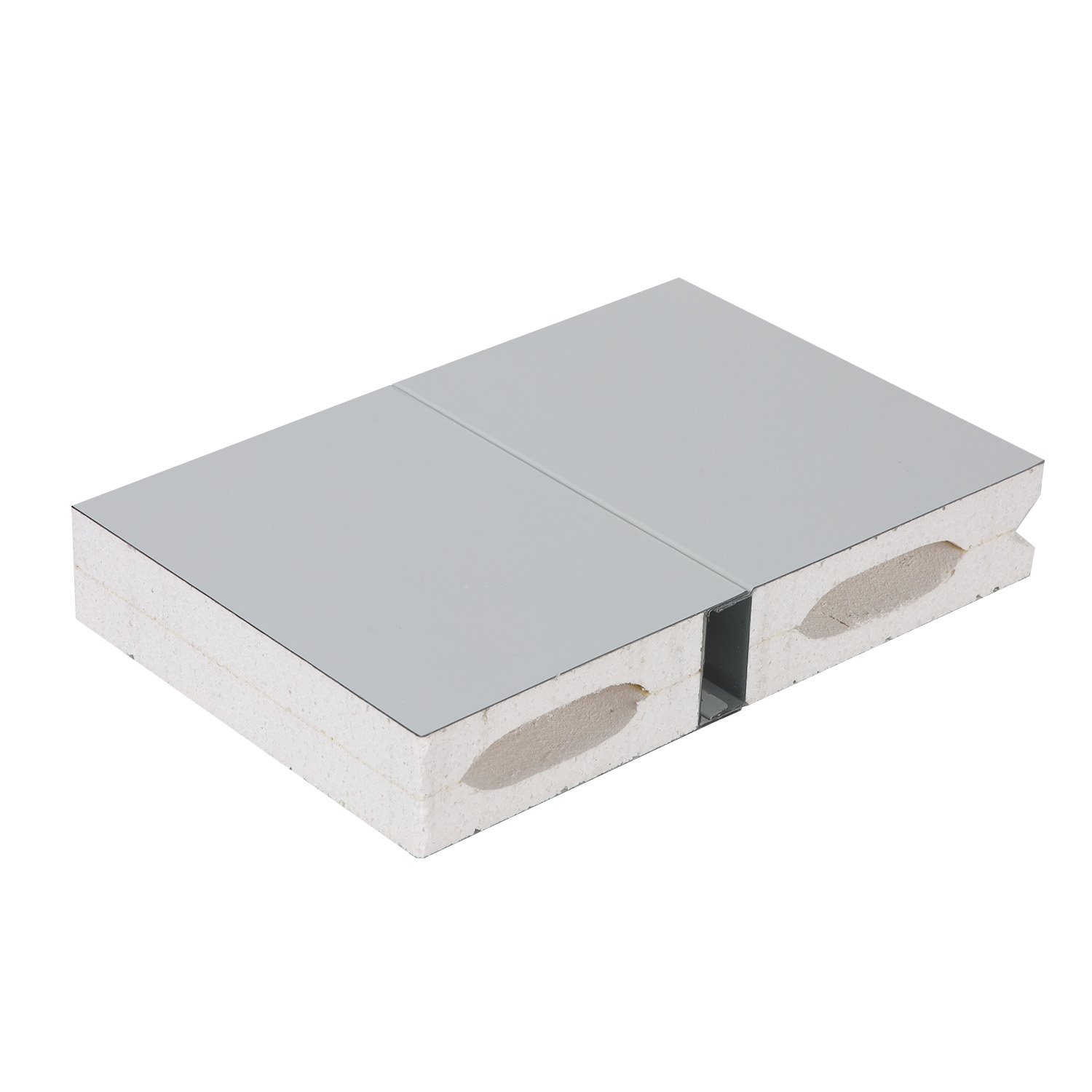

| Metal skin | 0.4-0.8 mm pre-painted steel, stainless steel or functional coated sheet |
| Surface options | PE, HDP, PVDF, antistatic, antibacterial or conductive coating by project |
| Application rooms | Clean corridors, laboratories, medical rooms and controlled industrial spaces needing inorganic core material |
| Core build-up | Inorganic magnesium oxysulfide mineral core |

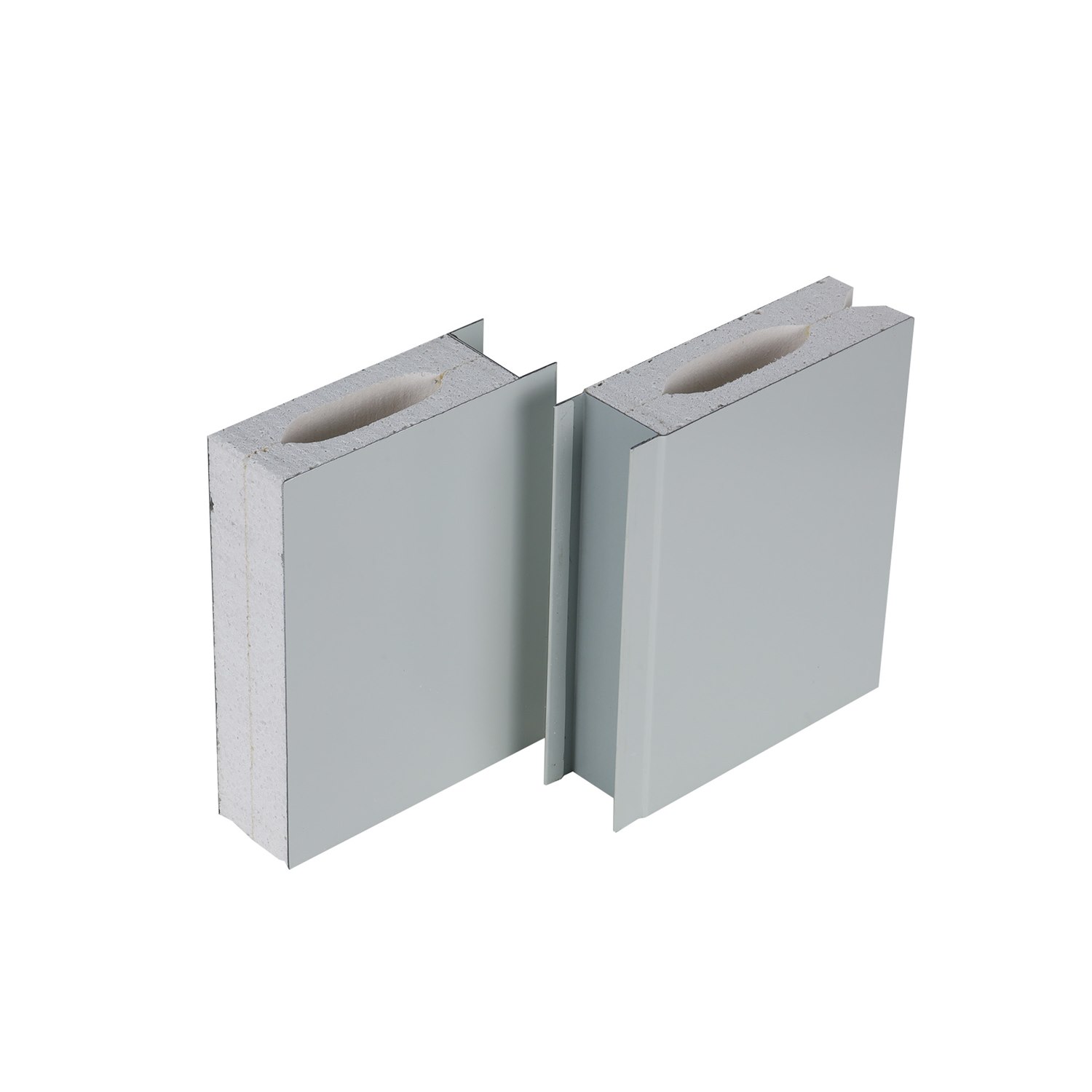

| Joint form | Machine-formed edge profile for cleanroom sealant joint |
| Main advantage | Inorganic core with good dimensional stability and clean appearance |
| Fire note | Assembly approval should be checked against local project requirements |
| Order information | Core requirement, panel thickness, coating, length list, room class and export packing method |
Magnesium oxysulfide mechanized cleanroom sandwich panel is an inorganic-core option for projects where a simple foam panel is not suitable and a rigid mineral composition is preferred. The panel keeps the clean surface and machine-formed joint needed for modular cleanroom construction.
This product is often evaluated for clean corridors, laboratories and medical support rooms where buyers want a more stable non-foam core. Before ordering, the project team should confirm local approval needs, room humidity, fixing method and the compatibility of sealants and trims.
The magnesium oxysulfide core gives the panel an inorganic mineral structure and a firm feel. It is useful when the buyer wants to move away from EPS while still using a mechanized panel system for speed and repeatable dimensions.
Because cleanroom panels work as part of a complete enclosure, the core should be considered together with surface coating, joint sealant, trims and door or window interfaces.
Panel lengths and openings should be confirmed from the room elevation drawings. If service penetrations are dense, the layout should avoid narrow remaining pieces and use proper reinforcement around the opening.
HIH Steel can coordinate packing labels with panel layout drawings so the installation team can place each module in the correct room sequence.
Use this product for cleanroom projects that need an inorganic mechanized panel, such as laboratory partitions, medical rooms, electronics support spaces and industrial clean corridors.
It is an inorganic core option and is often chosen when a buyer wants a more mineral-based panel than EPS for cleanroom partitions.
Yes. Lengths are made to order within production, handling and container-loading limits.
It uses normal cleanroom panel installation methods, but the support spacing, cutting plan and joint sealing should follow the approved layout.
Yes. HIH Steel can coordinate doors, observation windows, pass boxes and trims with the panel module.
Confirm local code requirements, room humidity, panel thickness, coating, openings, accessories and required documentation before mass production.
