Silica rock mechanized cleanroom panel for controlled rooms that need a mineral composite core, stable appearance and efficient installation.
| Product family | Mechanized cleanroom sandwich panel |
| Production method | Continuous machine production with silica rock composite core |
| Core material | Silica rock composite core |
| Typical thickness | 50, 75 or 100 mm; project-specific thickness by review |
| Effective width | 950, 980, 1150 or 1180 mm |
| Metal skin | 0.4-0.8 mm pre-painted steel, stainless steel or functional coated sheet |
| Surface options | PE, HDP, PVDF, antistatic, antibacterial or conductive coating by project |
| Application rooms | Industrial clean rooms, food rooms, laboratories and controlled corridors requiring mineral composite panels |
| Core build-up | Silica rock composite cleanroom core |
| Joint form | Machine-formed tongue-and-groove profile |
| Main advantage | Mineral composite core with clean surface and efficient installation |
| Design note | Confirm fire, humidity and local approval requirements before final selection |
| Order information | Panel schedule, core type, coating, room layout, accessory list and delivery port |
Silica rock mechanized cleanroom sandwich panel is a mineral composite alternative for buyers who want more than a basic foam core but still need the productivity of machine-made panels. It is suitable for clean corridors, food auxiliary rooms, laboratories and industrial controlled environments.
The panel should be selected with a clear room function in mind. When fire performance, humidity, cleaning agents or span requirements are strict, HIH Steel compares silica rock with rock wool, MGO board and PU options instead of relying on a single default panel.
Silica rock core provides a mineral composite option that can improve panel stability compared with light foam cores. It is useful where the buyer wants a clean surface, controlled joint and a more robust internal build-up.
The final panel choice should consider tested performance, installation span and room operating conditions rather than only the material name.

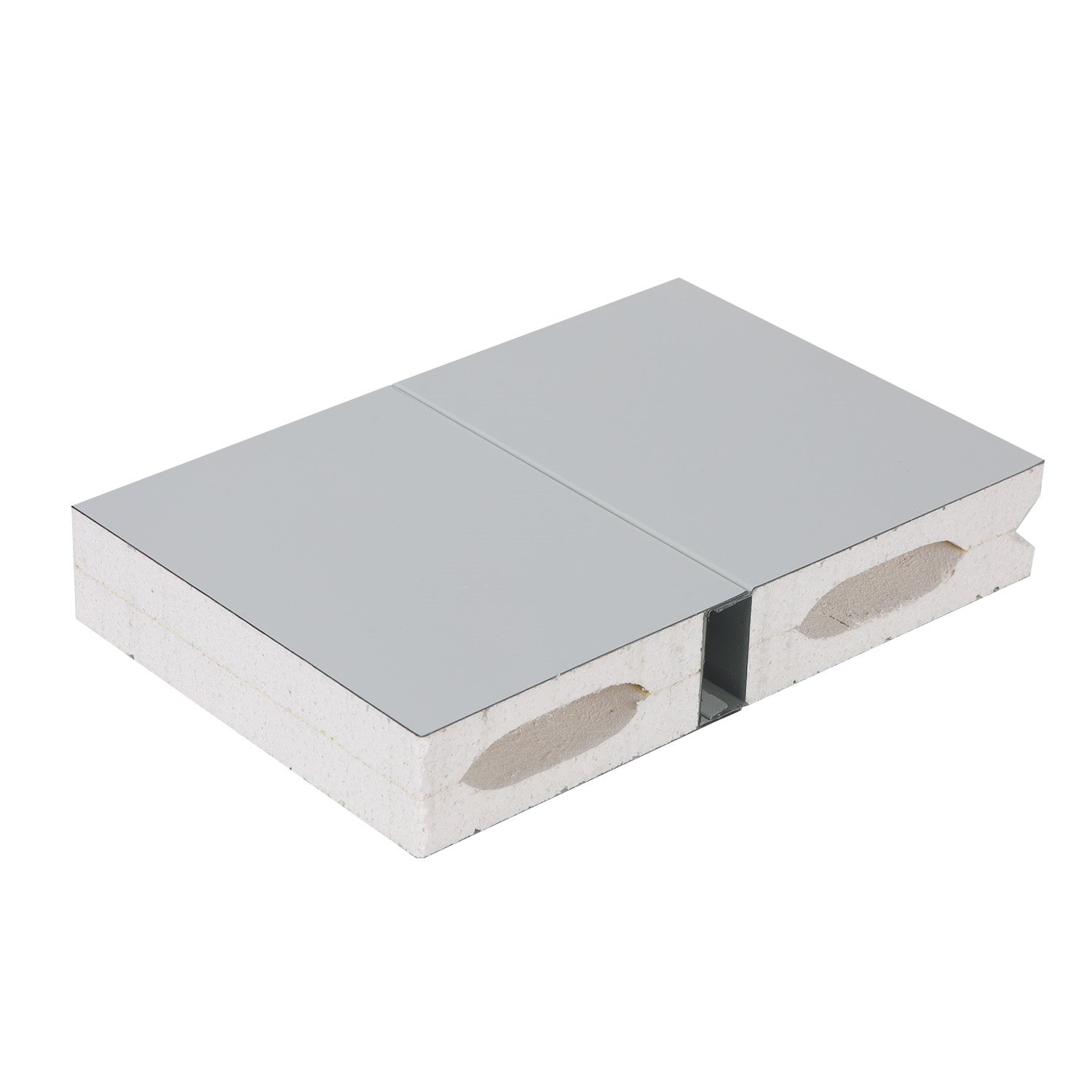

Mechanized panels rely on straight edges and protected joints. During packing, exposed ends and profile edges should be protected so the panel can engage correctly at site.
For projects with many rooms, panel labels can follow the elevation drawings. This makes installation faster and reduces the chance of mixing different lengths or room modules.
Typical uses include food processing clean areas, laboratory corridors, industrial cleanroom partitions and support rooms where a mineral composite panel is preferred.
It is used for cleanroom walls and ceilings where a mineral composite core is preferred over light foam and the project needs efficient mechanized panel installation.
No. Both are mineral-type options, but silica rock composite and glass magnesium board are different core systems and should be selected by project requirement.
Yes. Antibacterial coating can be specified when the cleaning procedure and durability requirements are known.
Keep panels dry, flat, protected from impact and separated from heavy site work until installation.
Yes. Send room use, fire requirement, humidity, cleaning method and drawings. HIH Steel can recommend a suitable core and panel thickness.
