Gypsum board handmade cleanroom panel for custom wall modules needing a flat board core, reinforced edges and cleanroom-compatible coated steel surfaces.
| Product family | Handmade cleanroom sandwich panel |
| Production method | Handmade modular fabrication with four-side reinforced metal keel |
| Core material | Gypsum board core or gypsum board composite core |
| Typical thickness | 50, 75 or 100 mm; custom thickness by design |
| Effective width | 980, 1160, 1180 or 1200 mm module, custom module by layout |
| Metal skin | 0.4-0.8 mm pre-painted steel, stainless steel or functional coated sheet |
| Surface options | PE, HDP, PVDF, antistatic, antibacterial or conductive coating by project |
| Application rooms | Clean corridors, laboratories, medical support rooms and custom partitions requiring flat board panels |
| Frame system | Galvanized steel keel and reinforced corner structure |
| Core build-up | Gypsum board or gypsum-based composite core |
| Joint form | Aluminum connector or sealed cleanroom joint |
| Main advantage | Flat board feel, custom module design and cleanroom surface finish |
| Order information | Room layout, opening list, board requirement, coating, accessories and packing sequence |
Gypsum board handmade cleanroom panel is a custom panel option for projects that need a flat board-type core and reinforced cleanroom edges. It is useful for clean corridors, laboratories and support rooms where a tidy surface, controlled openings and modular installation matter.

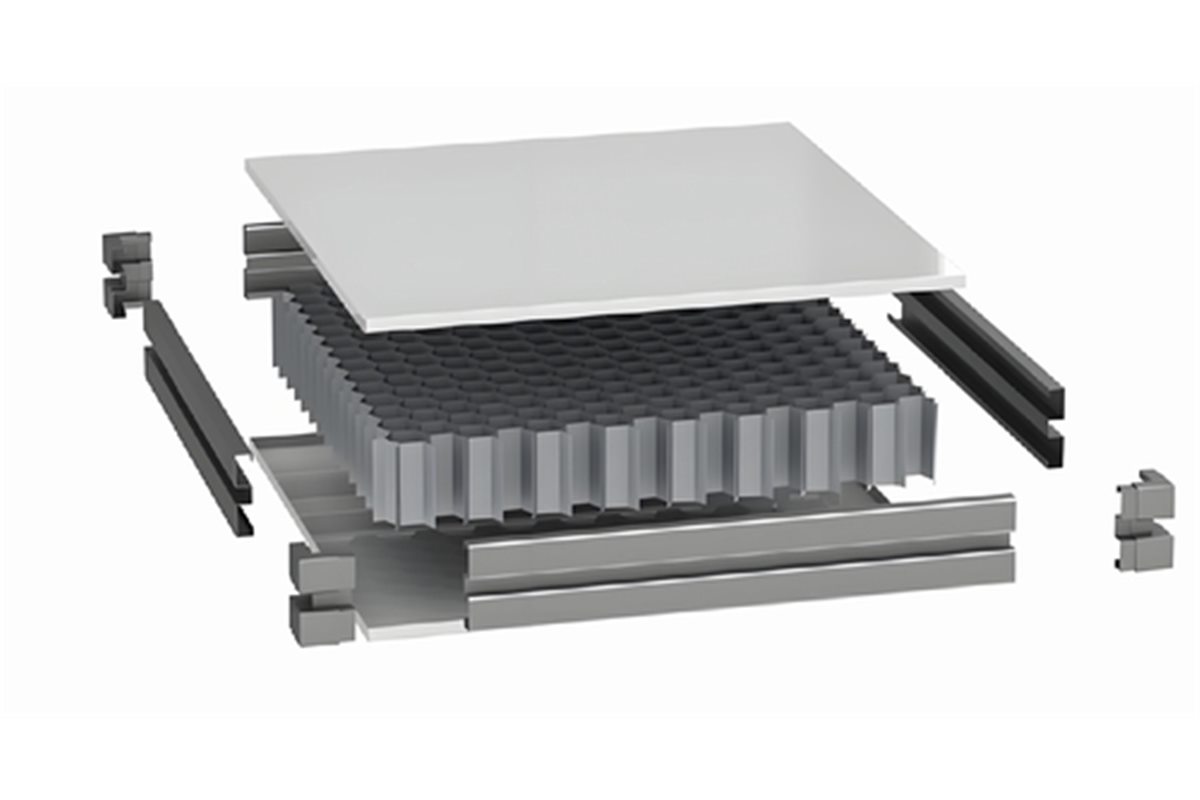

The product is not a standard drywall panel. It is built as a cleanroom sandwich module with coated steel skins, a reinforced perimeter frame and joint details that connect to the rest of the cleanroom enclosure.

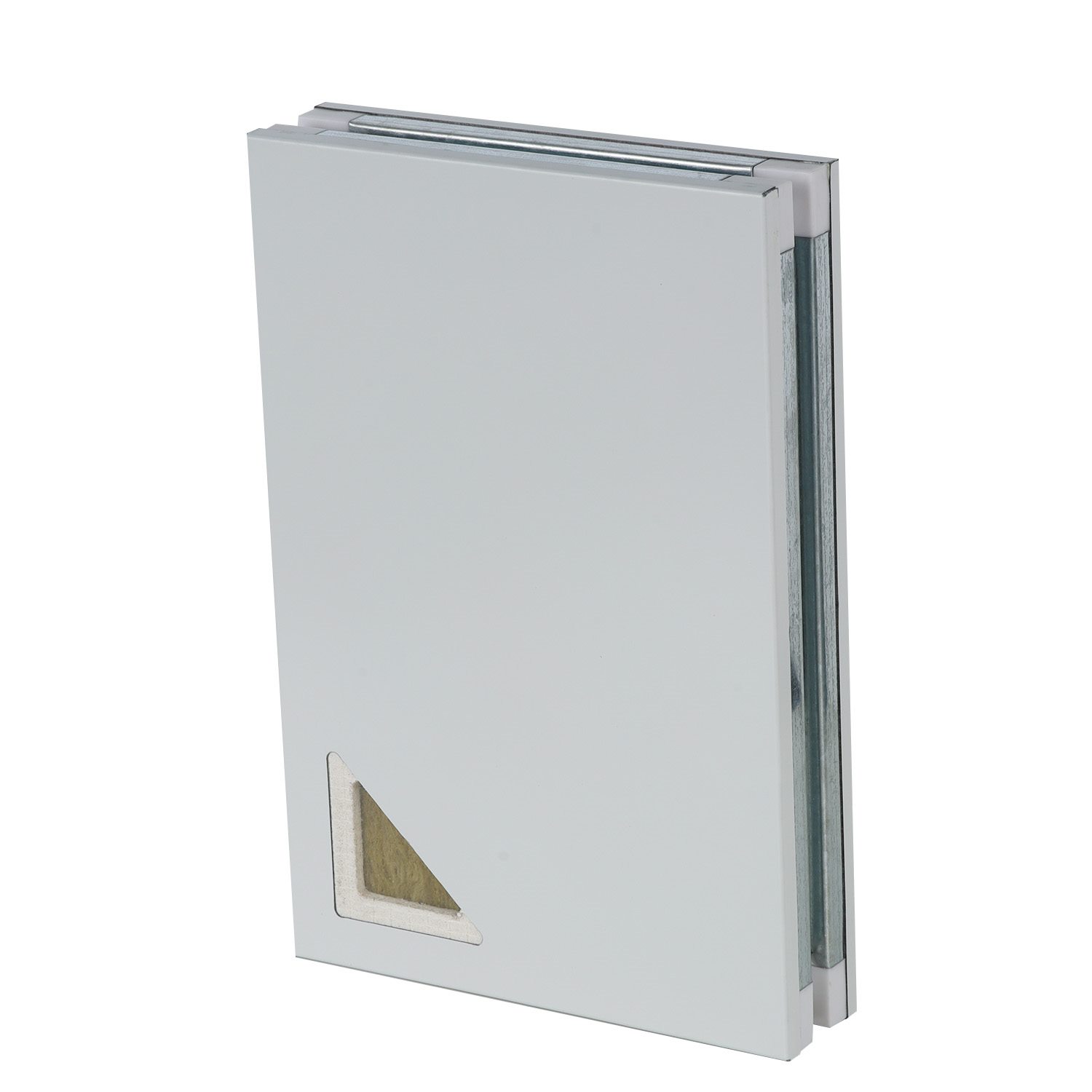

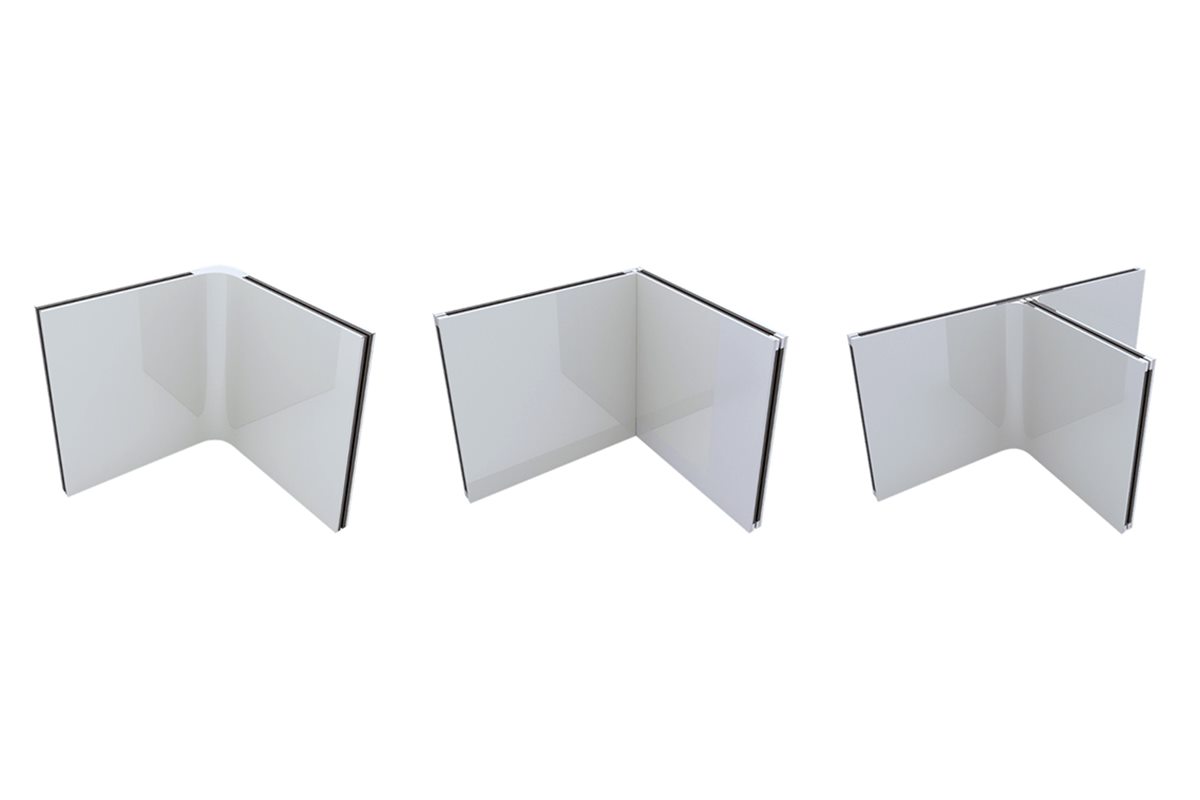

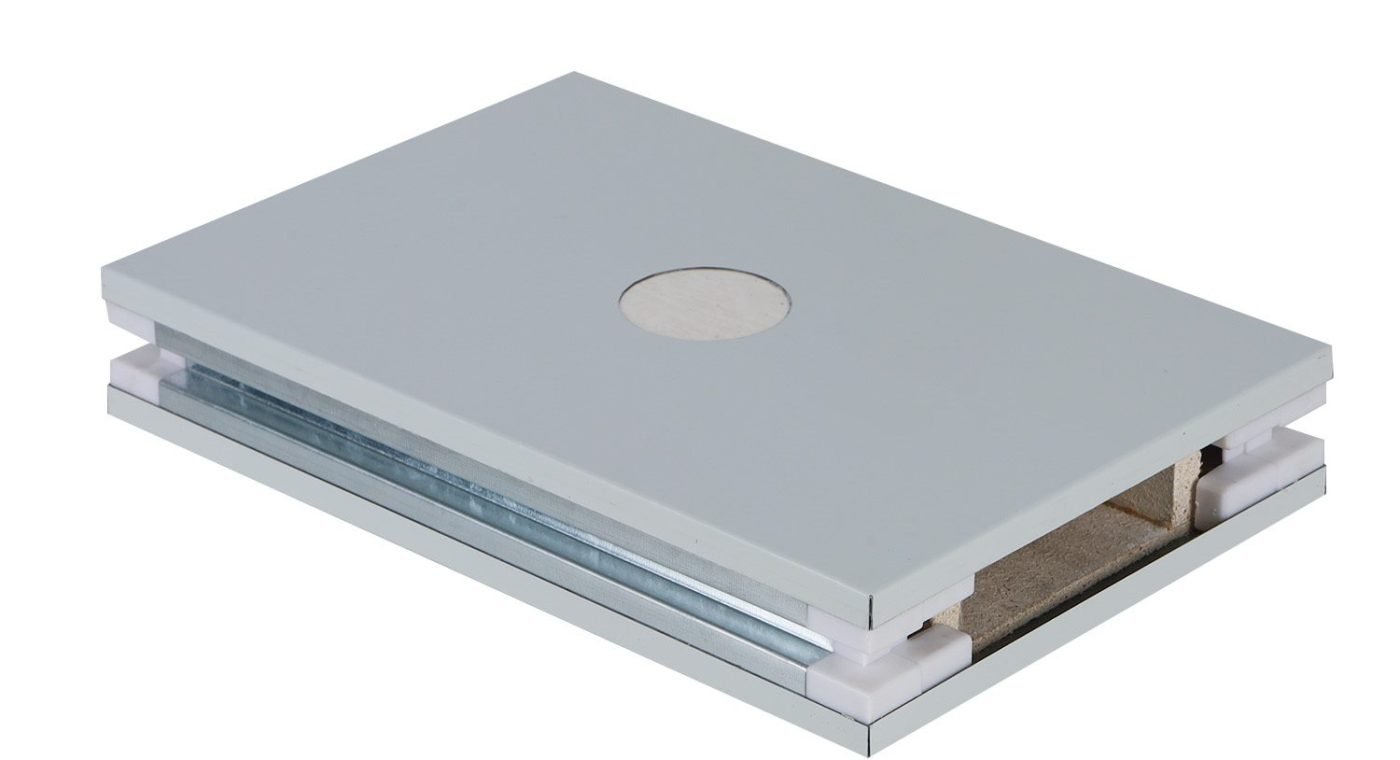

The gypsum board core gives a firm panel feel and helps maintain a clean plane under corridor lighting. Four-side framing protects the edges and supports custom details such as service openings or corner modules.

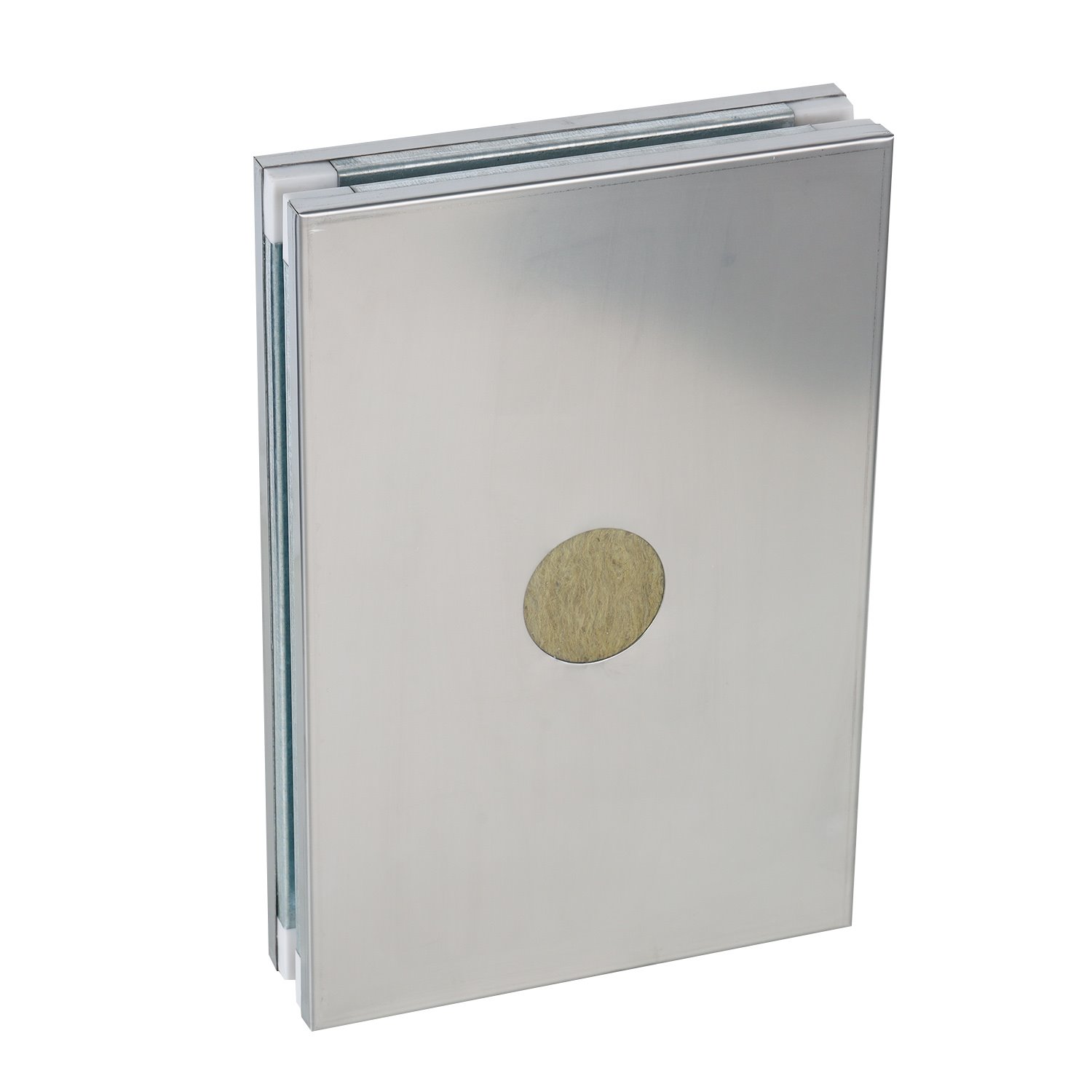

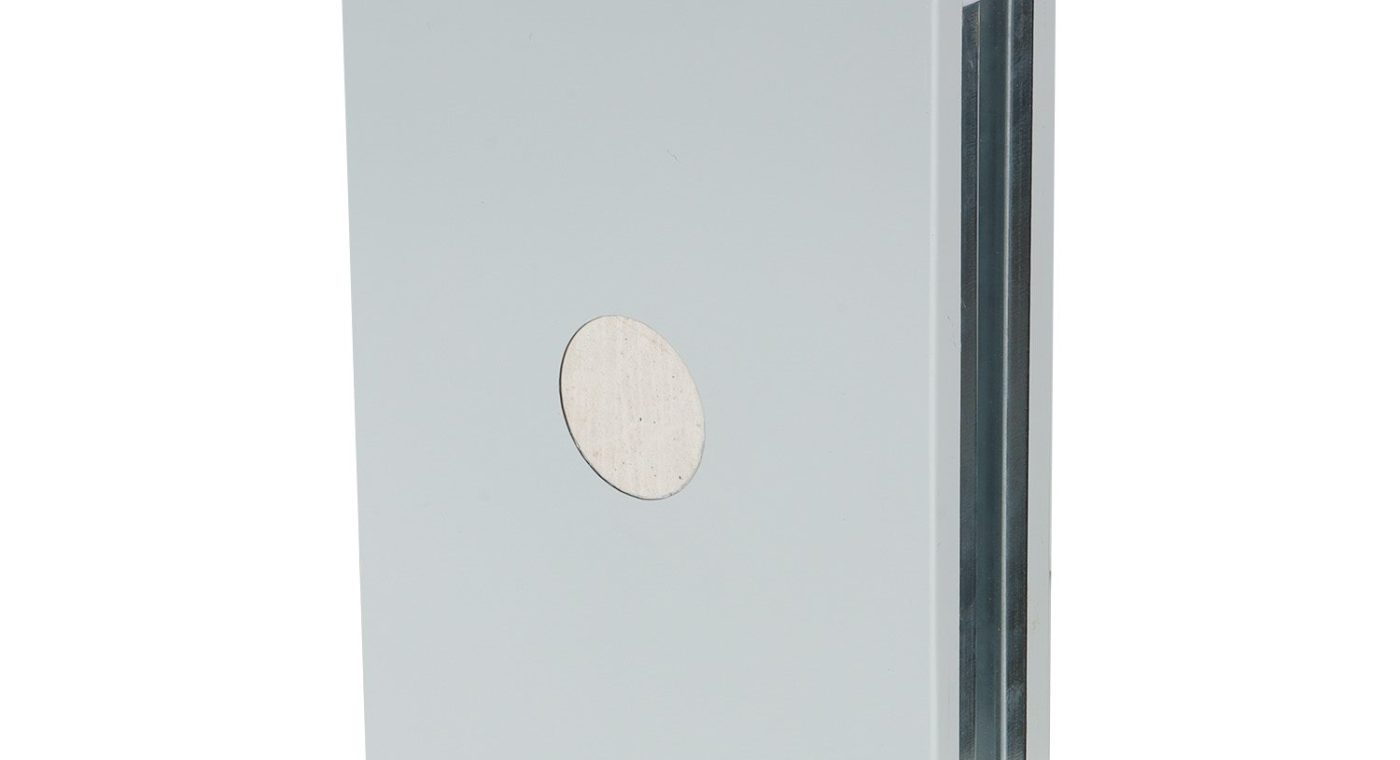

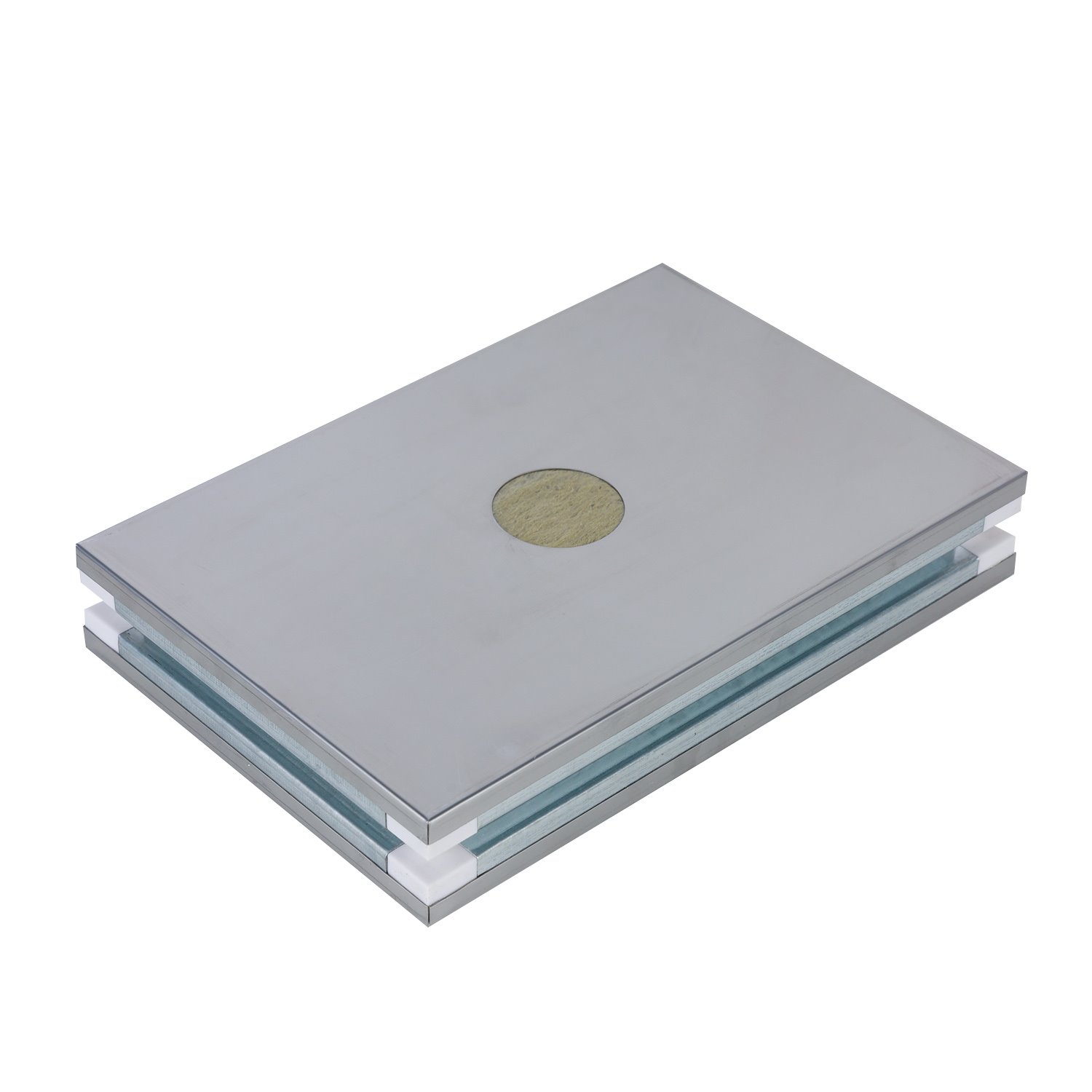

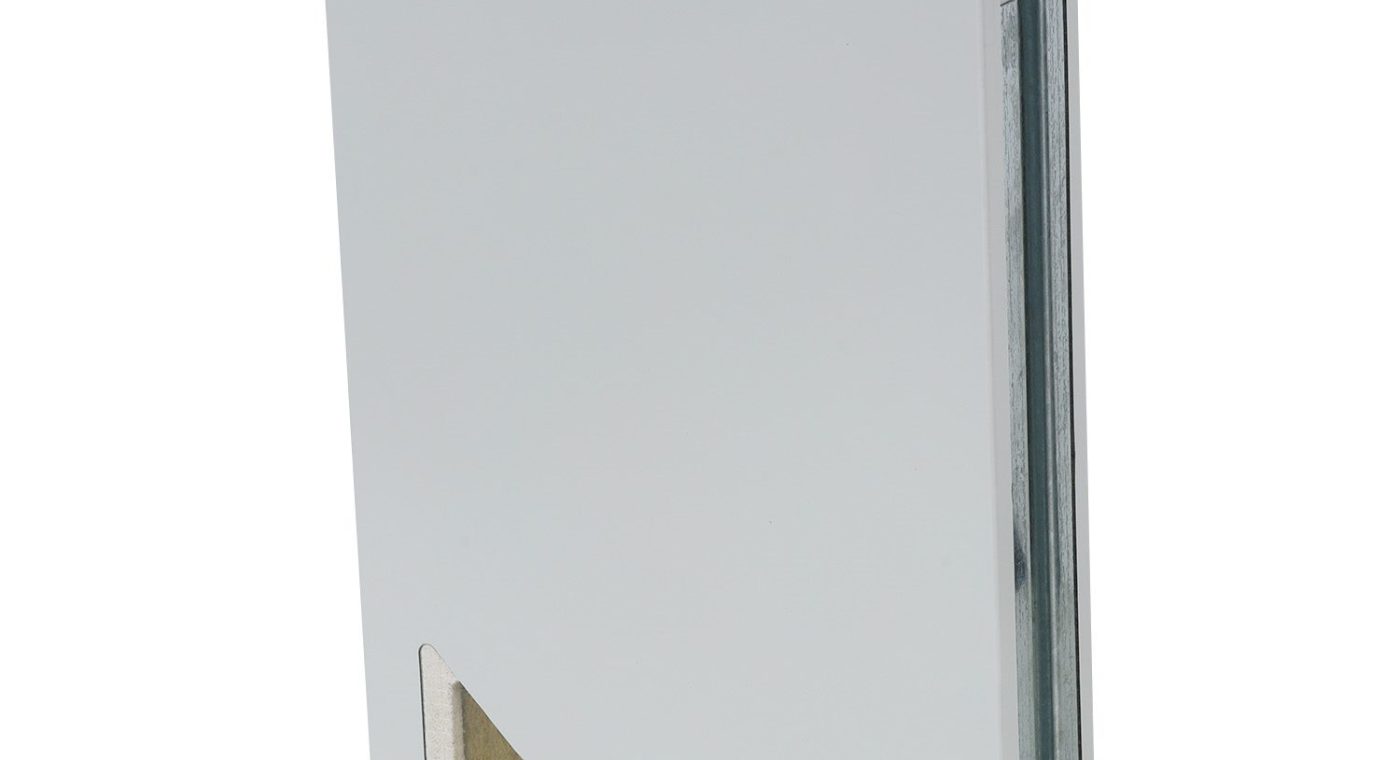

The sample opening allows the buyer to inspect the board core before confirming mass production.
Handmade production can prepare openings, conduits, embedded boxes and reinforced zones according to the final drawing. This is especially useful in cleanroom projects where cutting after installation creates dust and slows final cleaning.
Surface coating should be selected from cleaning method, abrasion risk and room function. Antistatic or antibacterial coatings can be specified where needed.

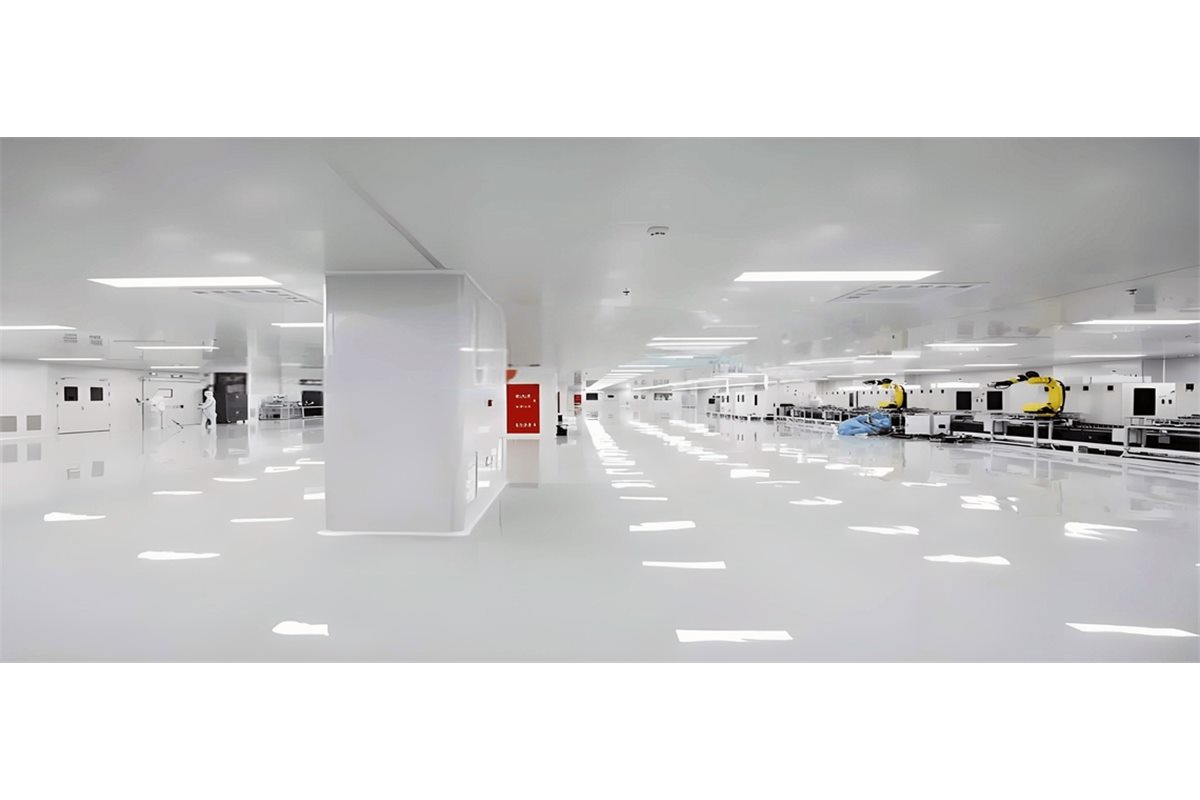

Use this panel for clean corridors, laboratories, medical support spaces, utility rooms and custom partitions where a gypsum board core is preferred.
Yes. It is a cleanroom sandwich panel with coated steel skins, reinforced edges and cleanroom joint details, not a normal drywall board.
Yes. Openings and reinforcement can be prepared in the factory when final drawings are provided.
PE, HDP, PVDF, antibacterial, antistatic, conductive and stainless steel surface options can be discussed according to room use.
Yes. The wall-to-ceiling interface should be coordinated in the room layout and trim schedule.
Provide room dimensions, wall height, panel thickness, coating, opening list, accessories, destination country and target delivery time.
