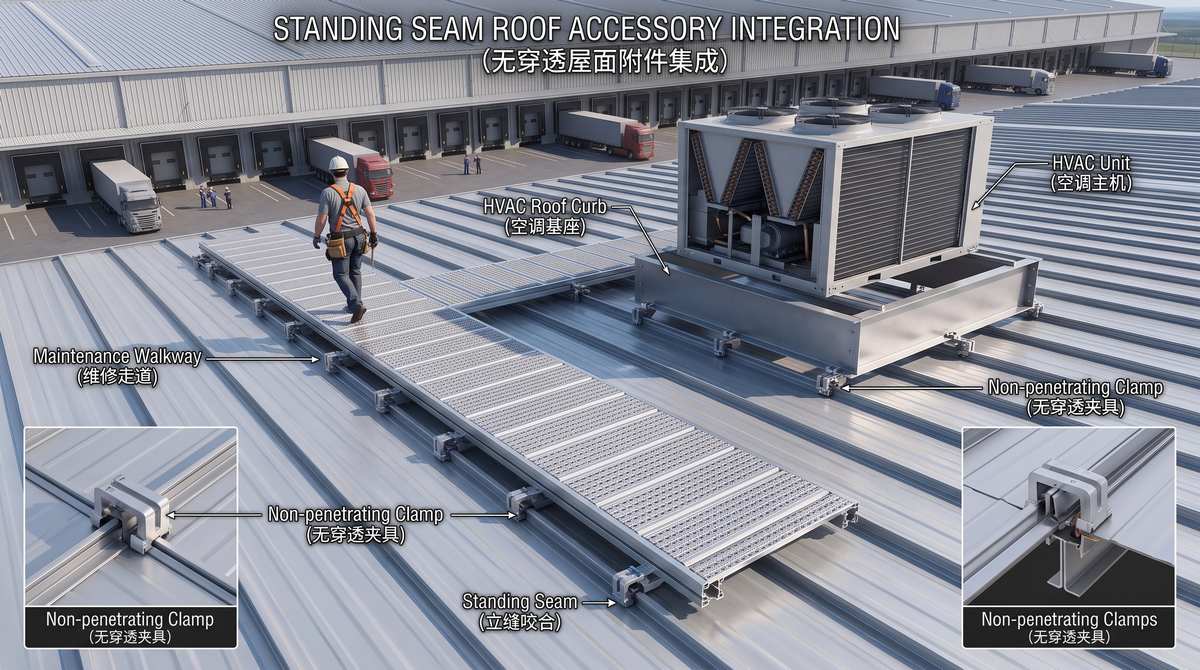

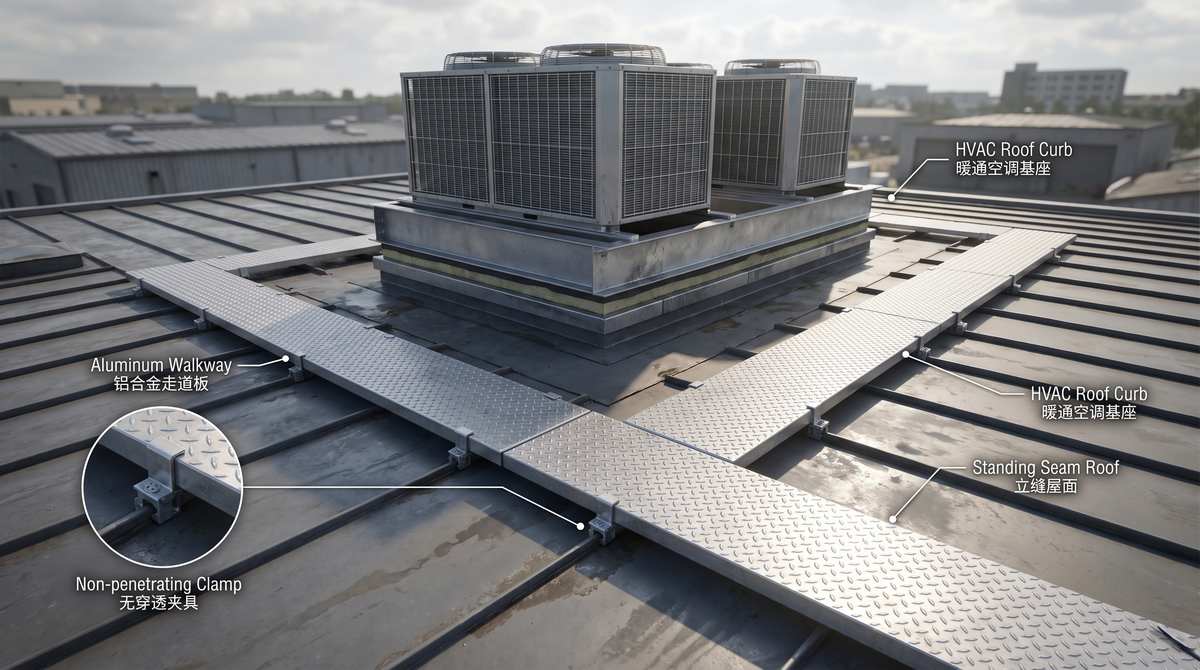

Industrial Roof Curb and Aluminum Walkway Installation on Standing Seam Roofs

Introduction: The Zero-Penetration Mandate

HVAC units and maintenance crews destroy metal roofs. Driving screws through a standing seam panel to mount an AC unit is engineering malpractice. As a premier B2B supplier of roof maintenance access systems, we source exact, zero-penetration accessories from top OEM factories. Here is the absolute mechanical logic for roof equipment mounting.

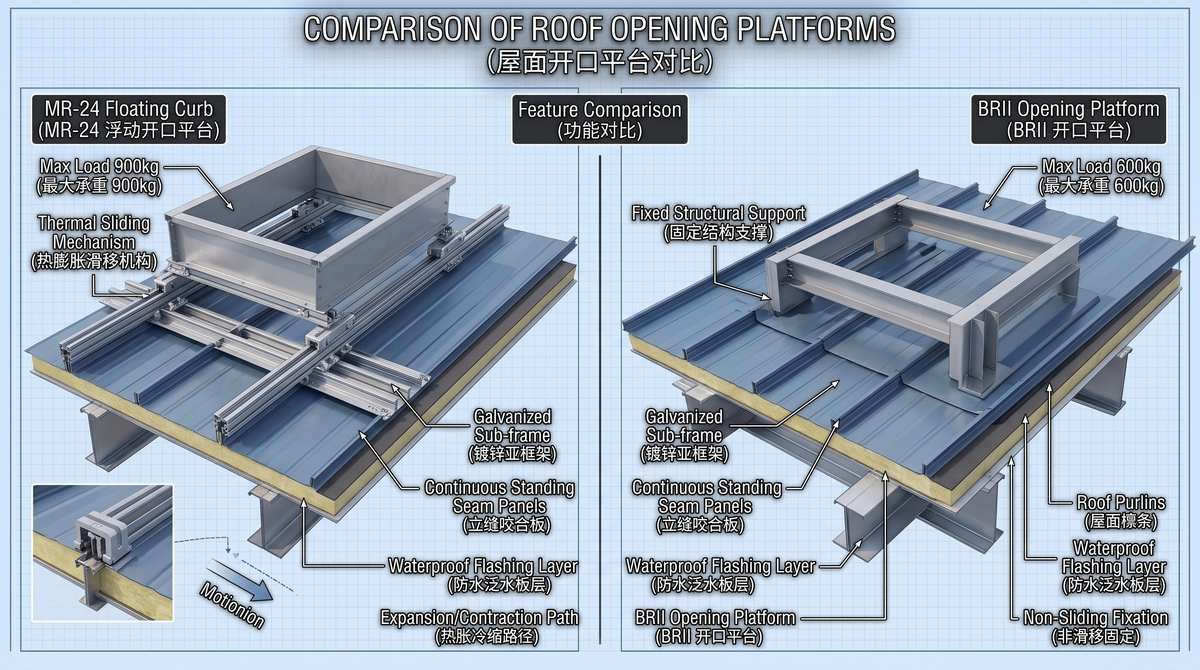

1. Floating Roof Curbs & Thermal Movement

Standing seam roofs expand and contract. They slide back and forth. If you bolt an HVAC curb directly to the structural purlins, the moving roof panels will tear themselves apart against the stationary curb. You must mandate a floating standing seam roof curb installation. We supply fully welded aluminum curbs that attach directly to the roof panels, not the purlins. The curb floats synchronously with the panels, absorbing the full ±32mm thermal movement. This is the only way to guarantee a leak proof roof curb for standing seam applications. Load Rule: A standard floating curb handles an hvac roof curb load capacity PEB of up to 900kg. For heavy equipment (200~900kg), you must install trimmer sub-beams underneath the panels to distribute the dead weight.

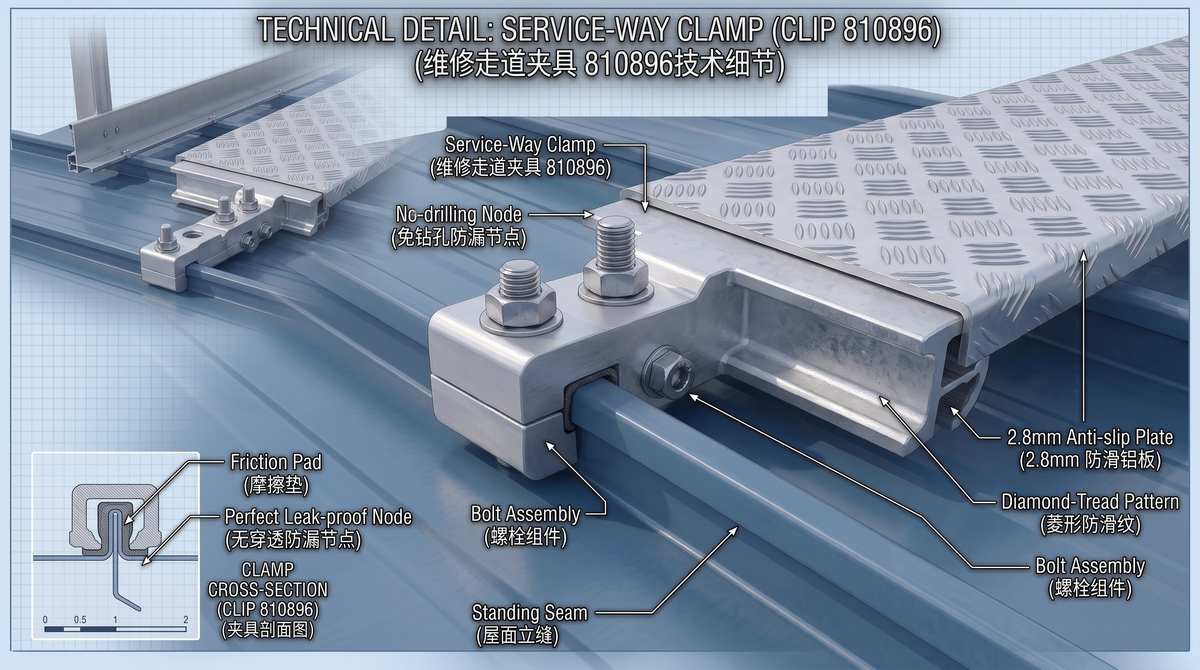

2. Non-Penetrating Aluminum Walkways

Maintenance crews dropping tools will dent and rust your steel panels. You must install a dedicated aluminum roof walkway system service way. We specify 2.8mm checkered aluminum plates. The Clamp Logic: You secure these walkways using a non penetrating roof equipment support system. Heavy-duty extruded aluminum S-5 style clamps pinch the 360° standing seam. Zero holes. Zero leaks. Recommended for roof slopes up to 1:12.

3. Roof Access Infrastructure Matrix

Do not fabricate roof accessories on-site. Buy them engineered and pre-welded wholesale.
