FM 4880 vs ASTM E84 Fire Testing Standards: The Complete Guide for Specifying Insulated Metal Panels

For architects, civil structural engineers, and multinational building owners, navigating fire safety ratings for insulated metal panels (IMPs) is one of the most critical risk-mitigation steps in commercial construction. With combustible insulation materials historically scrutinized following major catastrophic structure fires, global insurers and regulatory building codes demand rigorous third-party certifications. The two most prominent international testing benchmarks are ASTM E84 (Surface Burning Characteristics) and FM 4880 (Full-Scale Corner Fire Test for Building Panels).

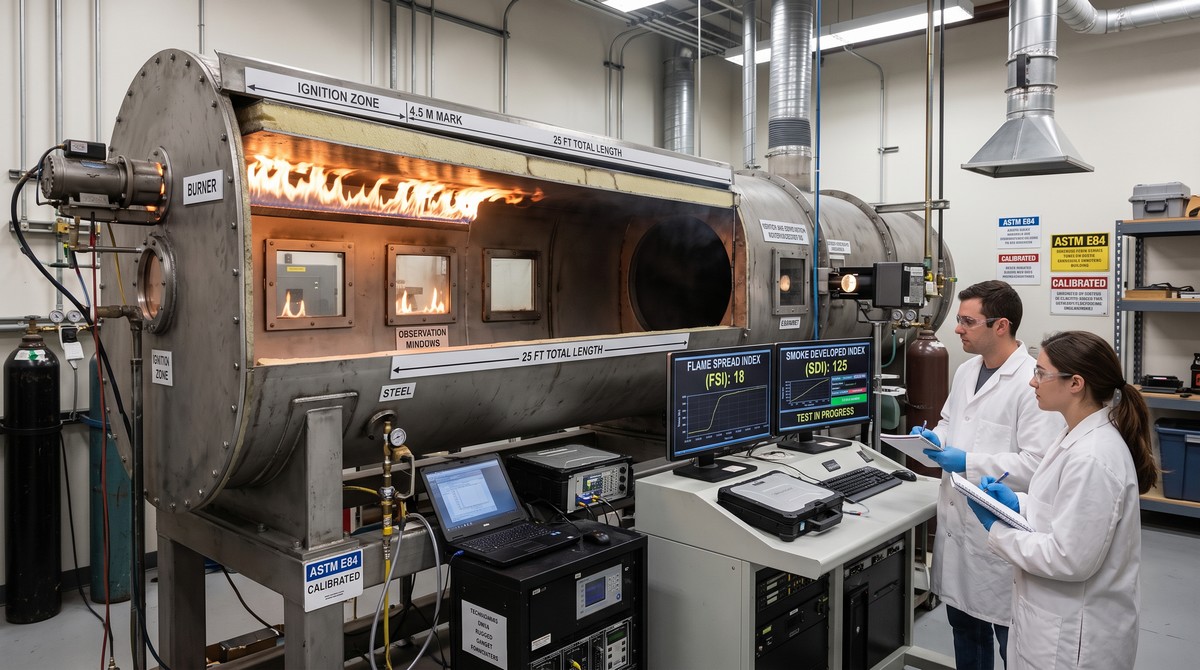

As highlighted by fire engineering specialists at my factory, ASTM E84—commonly known as the 25-foot Steiner Tunnel test—evaluates two fundamental parameters under controlled laboratory flame exposure: Flame Spread Index (FSI) and Smoke Developed Index (SDI). To qualify for the elite Class A designation required in high-occupancy commercial and cold-chain facilities, an insulated composite panel must achieve an FSI of 25 or lower and an SDI of 450 or lower. While ASTM E84 provides a vital baseline metric for surface flammability, structural engineers recognize that small-scale tunnel tests do not fully simulate the thermal dynamics, panel joint delamination, or cavity draft effects of a real-world multi-bay warehouse fire.

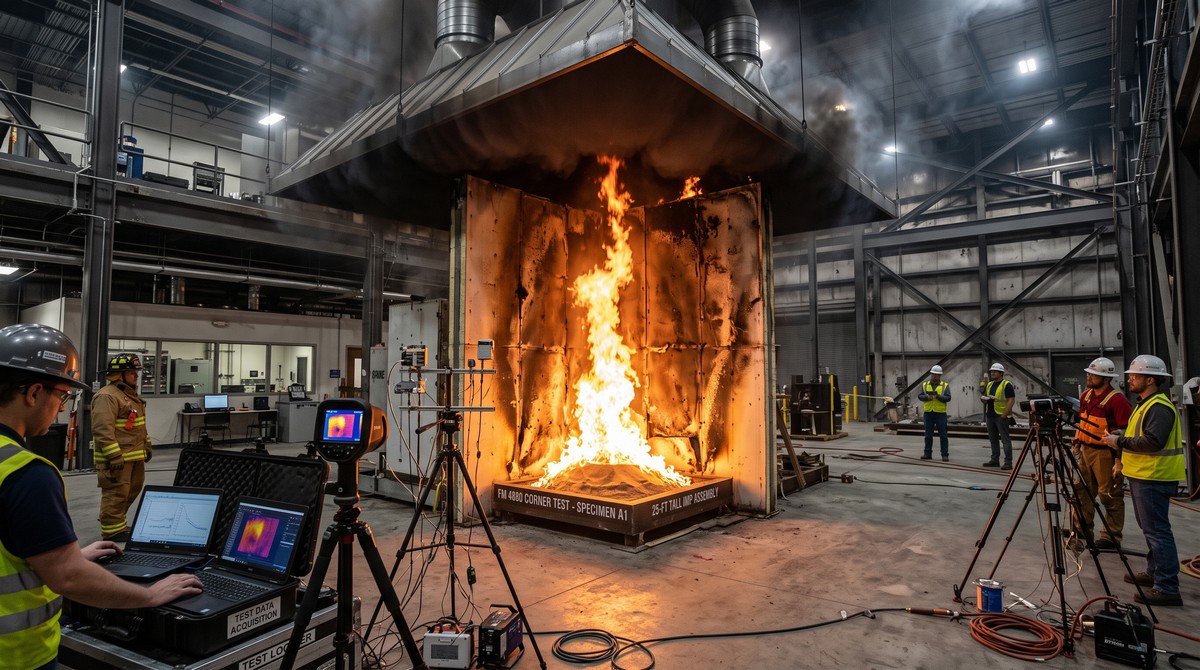

This is where FM Approvals standard FM 4880 enters as the global gold standard for commercial and industrial risk mitigation. Developed by FM Global, FM 4880 tests insulated wall and roof panel assemblies in full-scale 25-foot (7.6 m) and 50-foot (15.2 m) corner configurations. The test exposes corner panel assemblies to an intense 360 kW sand burner flame for 15 minutes, followed by an aggressive 750 kW exposure. To achieve FM 4880 approval without height restrictions, the panel core must not self-propagate flame to the limits of the test structure, collapse, or generate uncontrolled internal burning.

Achieving FM 4880 compliance fundamentally transforms operational facility costs. Facilities constructed with FM-certified PIR (polyisocyanurate) and rock wool panels frequently qualify for 15% to 35% discounts on annual commercial property casualty insurance premiums. Furthermore, under international trade frameworks, FM-certified panels seamlessly fulfill European CE Marking Declaration of Performance (DoP) under EN 13501-1 (A2-s1,d0 or B-s1,d0) and North American IBC (International Building Code) Chapter 26 requirements.

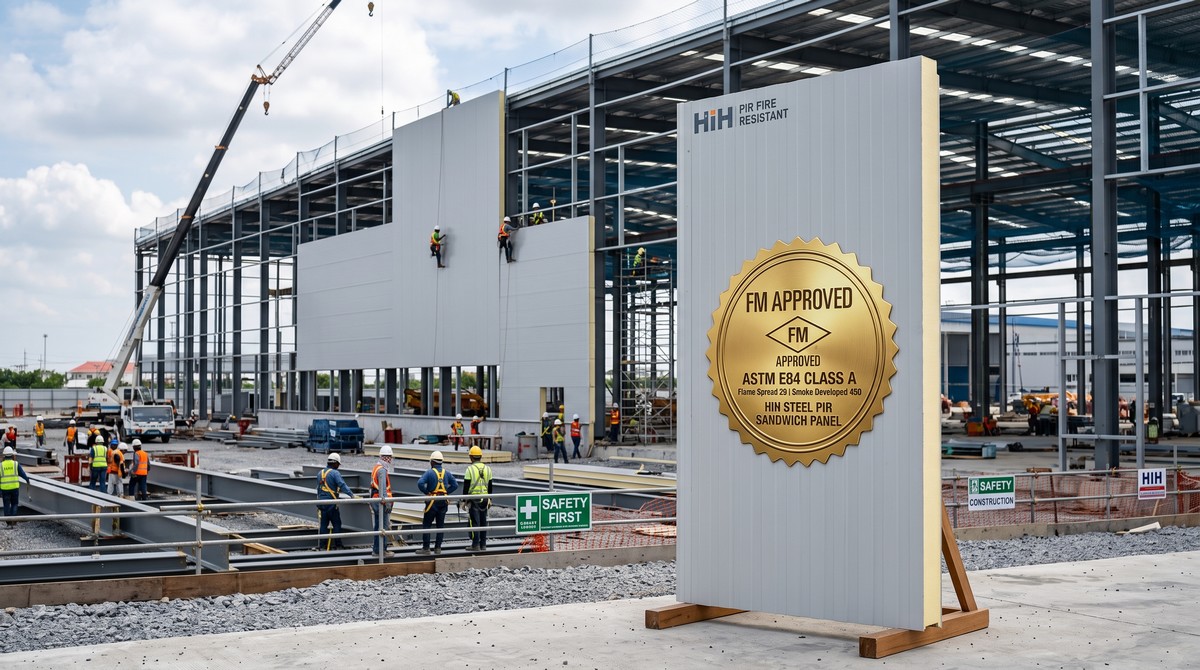

HIHSteel engineers its continuous PIR and rock wool sandwich panel production lines to satisfy the most stringent global fire safety thresholds. Utilizing pentane-blown polyisocyanurate formulations characterized by tight polyisocyanurate ring conversions (>90%) and automated structural PUR adhesives, HIH Steel panels provide verified Class A fire resistance and robust joint integrity. Contact hihsteel.com to review certified test reports, CAD shop drawings, and export project quotations.

Comparative Fire Testing Standards: ASTM E84 vs. FM 4880 vs. EN 13501-1
