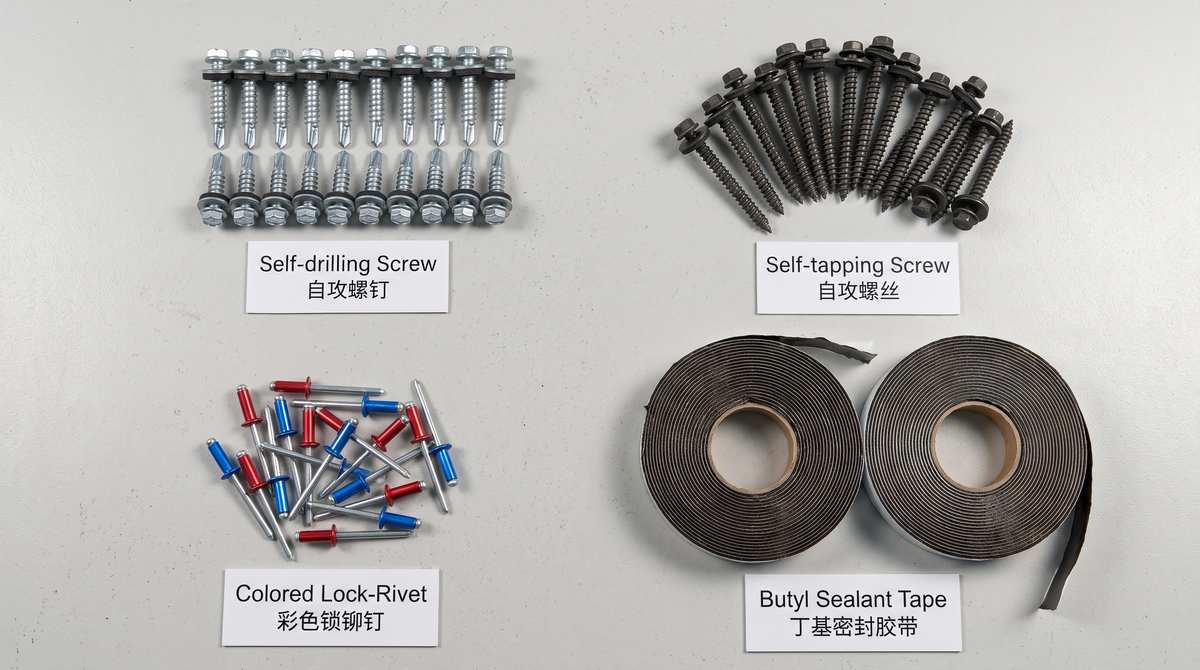

Introduction: The Mechanics of Failure
Water exploits weakness. Screws fail in tension. Wind shears rivets. You can engineer the heaviest steel frame, but if you buy cheap construction fasteners and sealants, the building collapses. As a top-tier B2B supplier, we source precision-engineered hardware from verified OEM factories. Every screw, rivet, and sealant roll has absolute mathematical limits. Here is the engineering logic for PEB fastening systems.

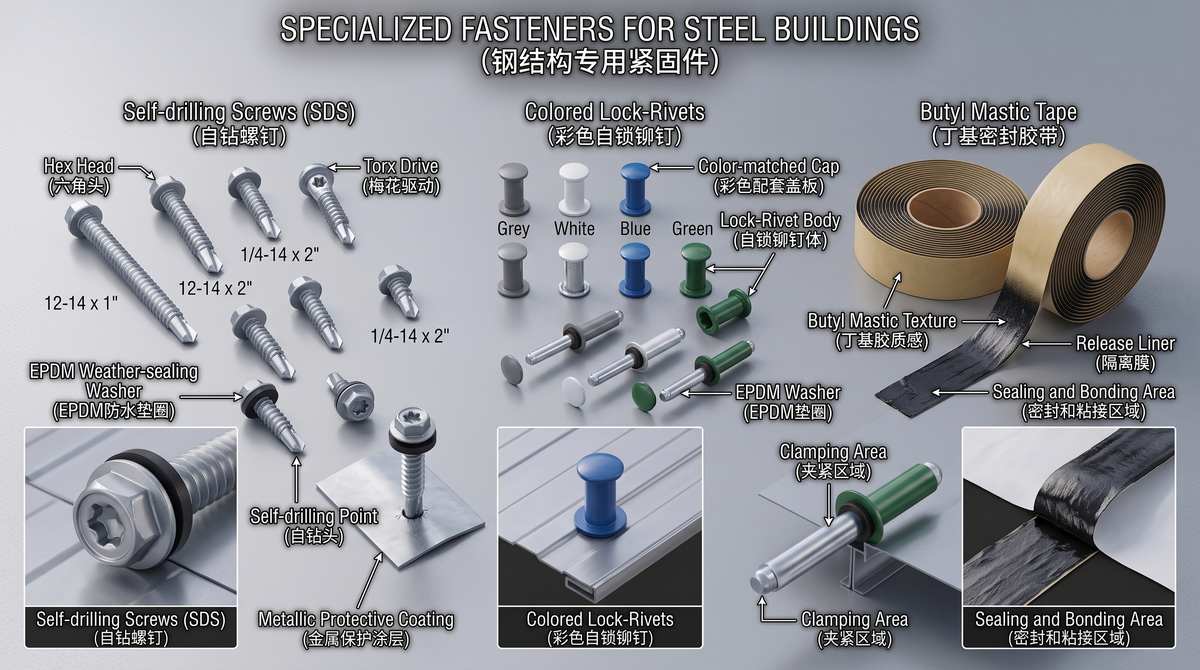

1. Fastener Groups & Pull-Out Strength Matrix
Never guess the load capacity. You must consult the self drilling screws pull out strength chart. The values below represent ultimate laboratory failure loads in kilograms.
The Safety Rule: You cannot use these raw numbers for building design. You MUST divide these ultimate failure loads by a strict Safety Factor (SF) of 2.5 to determine the allowable design working load. Premium fasteners integrate epdm rubber backed sealing washers to guarantee a watertight compression seal under maximum tension. Torx head coated fasteners steel building options are available for architectural facades.
| Fastener Type | 26ga (0.55mm) | 22ga (0.85mm) | 16ga (1.6mm) | 12ga (2.75mm) | 3/16″ (4.76mm) | 3/8″ (9.5mm) |
| 11/32″ Scrubolt | 84.6 kg | 162.0 kg | 653.3 kg | 1066.7 kg | 1287.0 kg | 2740.4 kg |
| 3/8″ Scrubolt | 378.3 kg | 781.0 kg | 781.0 kg | 1117.0 kg | 1312.4 kg | 1824.5 kg |
| #12-14 SDS | 63.2 kg | 131.8 kg | 341.4 kg | 691.1 kg | 870.5 kg | N/A |
| #12-14 SDS SS | 63.2 kg | 131.8 kg | 341.4 kg | 691.1 kg | 870.5 kg | N/A |
| 9/32″ Lock-Rivet | 136.7 kg | 206.1 kg | 424.1 kg | 471.7 kg | N/A | N/A |
2. Tri-Fold Lock-Rivets Washer Color Coding
Vibration backs out standard screws. You must use lock rivet blind fasteners for metal walls in high-vibration zones. These rivets expand into a tri-fold bulb behind the steel, locking permanently. We color-code the EPDM washers to guarantee the correct grip range on-site.
-
Short Grip Wall (Black Washer): Grip range 1.07~9.53mm. Accepts color caps.
-
Short Grip Roof (Green Washer): Grip range 1.07~9.53mm.
-
Long Grip Wall (Blue Washer): Grip range 6.35~15.88mm. Accepts color caps.
-
Long Grip Roof (Gold Washer): Grip range 6.35~15.88mm.
3. Sealant Temperature Thresholds & Coverage
Applying butyl mastic sealant tape peb roofing in freezing weather causes immediate seal failure. The tape loses tack.
-
Normal Window (≥ -6.6°C): All butyl tapes and cartridge sealants allowed.
-
Cold Window (-15.0°C to -6.6°C): Cartridge sealant ONLY. Roll tapes are banned.
-
Severe Freeze (< -15.0°C): ALL SEALANT APPLICATION STRICTLY PROHIBITED.
-
Coverage Rule: A standard 1/12 gal tube cut with an 8mm nozzle yields exactly 6.0 meters of continuous bead.
| Sealant Type | Supply Format | Core Application |
| Butyl Tape | 5 x 6mm tape | Trapezoidal panel side and end lap sealing. |
| Tube Butyl | 1/12 gal tube (8mm nozzle) | Roof laps and cold weather caulking (covers 6.0m). |
| Wide Butyl Tape | 3 x 25mm tape | Dedicated for standing seam end laps. |
| Polyurethane Weather Sealant | 1/12 gal tube | Exterior gutters, flashing joints, and masonry reglets. |
