Snap Cap Glass Wool Roof Sandwich Panel

With unique snap cap installation system, these panels ensure easy and secure installation, improving construction efficiency. The excellent thermal insulation properties of glass wool offer enhanced energy efficiency and comfort. Experience reliable and long-lasting roofing performance with Snap Cap Glass Wool Roof Sandwich Panels.

Live chat Message

Details

1:Parameters for Snap Cap Glass Wool Roof Sandwich Panels

Steel Outer Layer	Common Thickness(mm)	Outer Panel Specs 0.6-0.8(Coated Steel Panel)
	Common Thickness(mm)	Outer Panel Specs 0.4-0.7(Coated Steel Panel)
	Common Length(mm)	≤12000
	Common Width(mm)	950mm
	Coating	PVDF/SRP/HDP/PE
Insulation Core	Core Material	High-quality thermal insulation,fireproof and waterproof Rock wool
	Density(kg/M3)	Glass Wool:64
	Thickness(mm)	50-150
	U value(w/m·k)	Rock Wool: ≤ 0.043 / Glass Wool: ≤ 0.042 PU (Edge Sealing): ≤ 0.026
	Fireproof Rating	Glass Wool:Class A
Process	Joint	2-sided joint-Male-Female joint,PU Edge Sealing
	Production Process	Continuous Production Process
	Surface Texture	Exterior side:3 waves Interior side:Flat/Flat Ribbing
Center Trim Treatment	Connection	Metal Snap-in Cover Plate

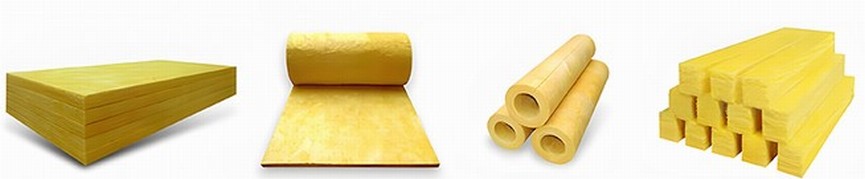

2:Details of Glass Wool

Glass Wool is available in various forms to cater to different insulation needs. It is classified into Glass Wool rods, Glass Wool blankets, and Glass Wool boards.

Glass Wool Rods: These are cylindrical-shaped Glass Wool products that are commonly used for thermal and acoustic insulation in pipes and ducts. They provide excellent insulation properties while allowing for easy installation and flexibility.
Glass Wool Blankets: These are flexible and lightweight rolls of Glass Wool. They are widely used for insulating walls, roofs, and floors. Glass Wool blankets are easy to handle and can be cut to fit specific dimensions, providing efficient thermal insulation.
Glass Wool Boards: These are rigid panels of Glass Wool that offer high structural integrity and thermal insulation. They are commonly used for wall insulation in commercial and industrial buildings. Glass Wool boards provide excellent fire resistance and are easy to install.

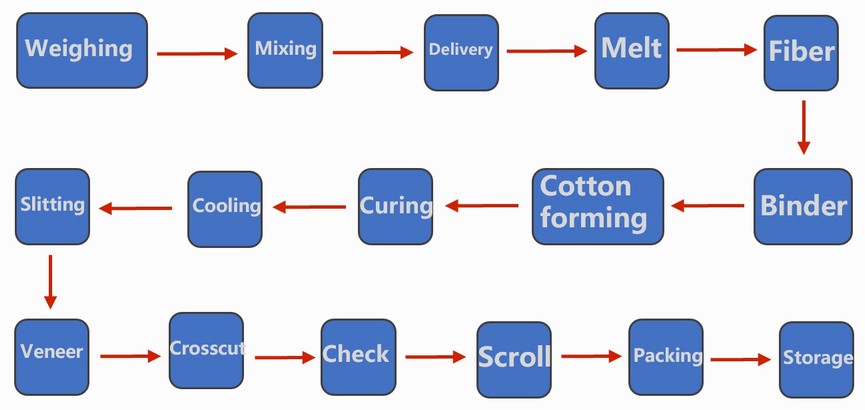

3:Snap Cap Glass Wool Roof Sandwich Panels Production Process

The production process of Glass Wool includes the following steps:

Raw Material Preparation: The raw materials, such as silica sand, limestone, and soda ash, are processed and prepared for the manufacturing process.
Melting and Fiber Formation: The raw materials are melted in a high-temperature furnace and then spun into fine fibers using a centrifugal spinning process.
Fiber Collection: The fibers are collected and formed into a mat using a binder or by mechanical interlocking.
Curing and Cutting: The mat is cured to enhance its strength and stability. It is then cut into desired dimensions.
Surface Treatment: The glass wool may undergo surface treatment to improve its properties, such as water repellency or fire resistance.
Packaging and Quality Control: The glass wool products are packaged and subjected to rigorous quality control measures to ensure they meet industry standards.

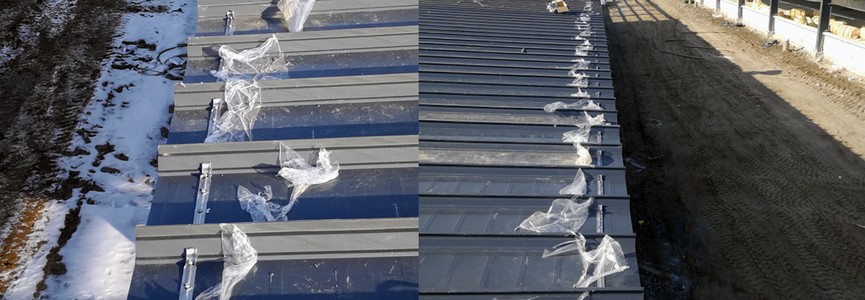

4:Snap Cap Glass Wool Roof Sandwich Panels Installation Site

Snap Cap Glass Wool Roof Sandwich Panels are designed for easy and efficient installation, making them an ideal choice for roofing applications. The snap cap system allows for quick and secure fastening of the panels, ensuring a tight and seamless fit. The installation process involves aligning the panels and snapping them together, eliminating the need for complex and time-consuming installation methods. This results in reduced labor costs and shorter construction timelines. The superior thermal insulation properties of Glass Wool combined with the convenience of snap cap installation make these panels a reliable and energy-efficient solution for roofing projects.

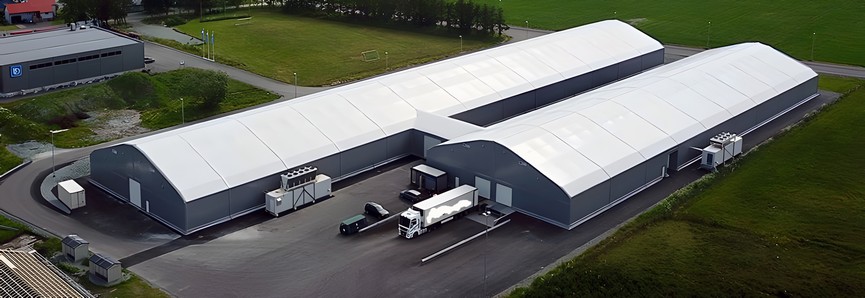

5:Snap Cap Glass Wool Roof Sandwich Panels Project Cases

Snap Cap Glass Wool Roof Sandwich Panels have been successfully utilized in numerous project cases, showcasing their exceptional performance and reliability. These panels have been installed in various roofing applications such as residential houses, commercial buildings, industrial facilities, and more. The snap cap installation system has provided convenience and efficiency, reducing installation time and labor costs. The panels' superior thermal insulation properties have contributed to enhanced energy efficiency and comfort in the buildings. With their durable construction and excellent weather resistance, Snap Cap Glass Wool Roof Sandwich Panels have proven to be a trusted solution for roofing projects, delivering long-lasting protection and insulation.
