1:Parameters for Interior Corrugated Metal Wall Panels for Lining Panels

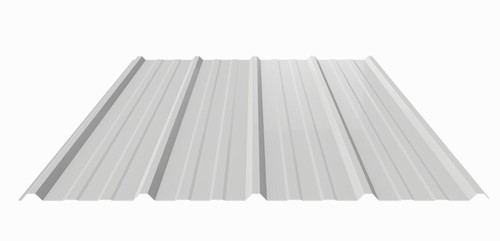

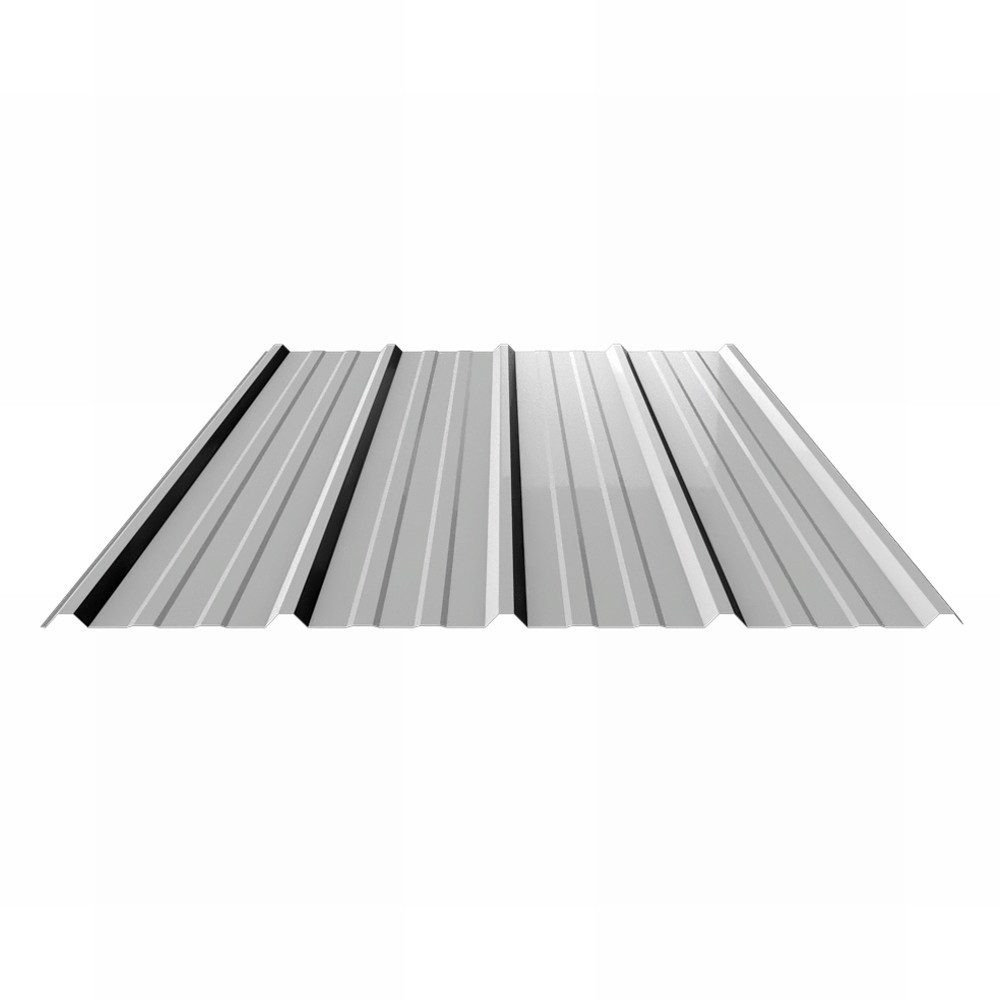

2:Details of Interior Corrugated Metal Wall Panels for Lining Panels

The interior corrugated metal wall panels are designed for various applications such as roof and wall lining panels, as well as lining for large canopies. They are installed on the inner side of the main purlins, offering an attractive and cost-effective solution with a standard market profile. These panels effectively conceal insulation materials and purlins, enhancing the visual appeal of the interior space. With a lower corrugation height, they are not typically suitable for use with insulation, but if necessary, the thickness of the insulation should not exceed 50mm. Manufactured from 0.43mm thick coated steel sheets, they can also be perforated for sound absorption purposes. Available in a width of 1000mm and recommended processing thickness of 0.3-0.8mm (with a suggested order thickness of 0.4-0.6mm), these panels can be processed using coated coils, plain sheets, aluminum alloy sheets, or stainless steel sheets (with a maximum yield strength of 550MPa and a recommended range of 300-350MPa).

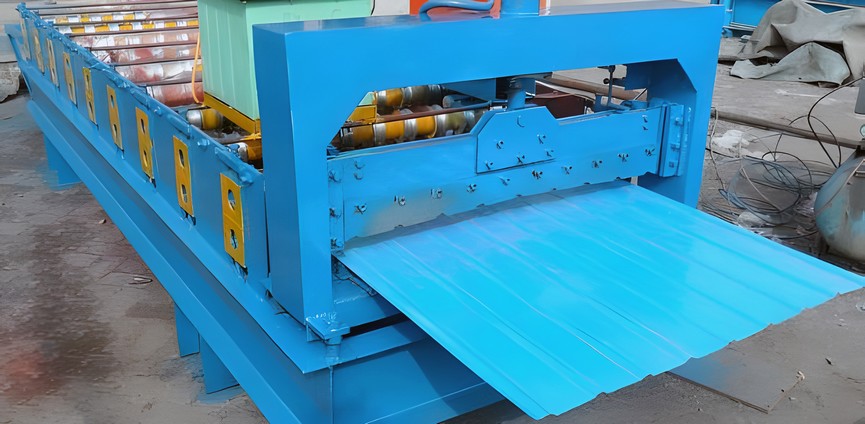

3:Interior Corrugated Metal Wall Panels for Lining Panels Production Machine

The production machine for interior corrugated metal wall panels is designed to efficiently manufacture high-quality panels for lining applications. This machine is equipped with advanced technology and precision controls to ensure accurate and consistent production. It can handle various materials, including coated steel sheets, aluminum alloy sheets, and stainless steel sheets, with a recommended thickness range of 0.3-0.8mm. The machine offers flexibility in panel dimensions, allowing for customization according to project requirements. It features a streamlined process, from material feeding to cutting and forming, ensuring smooth and efficient production. With this production machine, you can achieve superior quality interior corrugated metal wall panels for your lining panel needs.

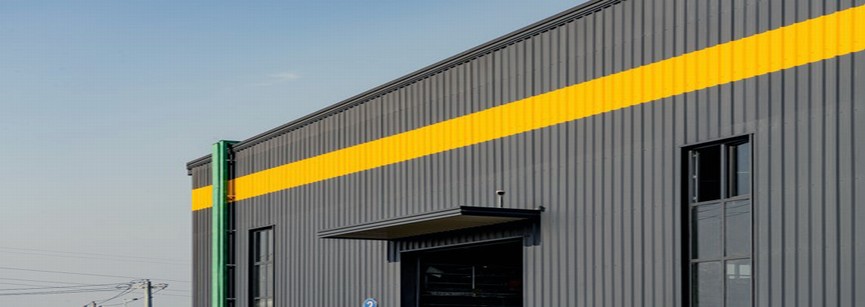

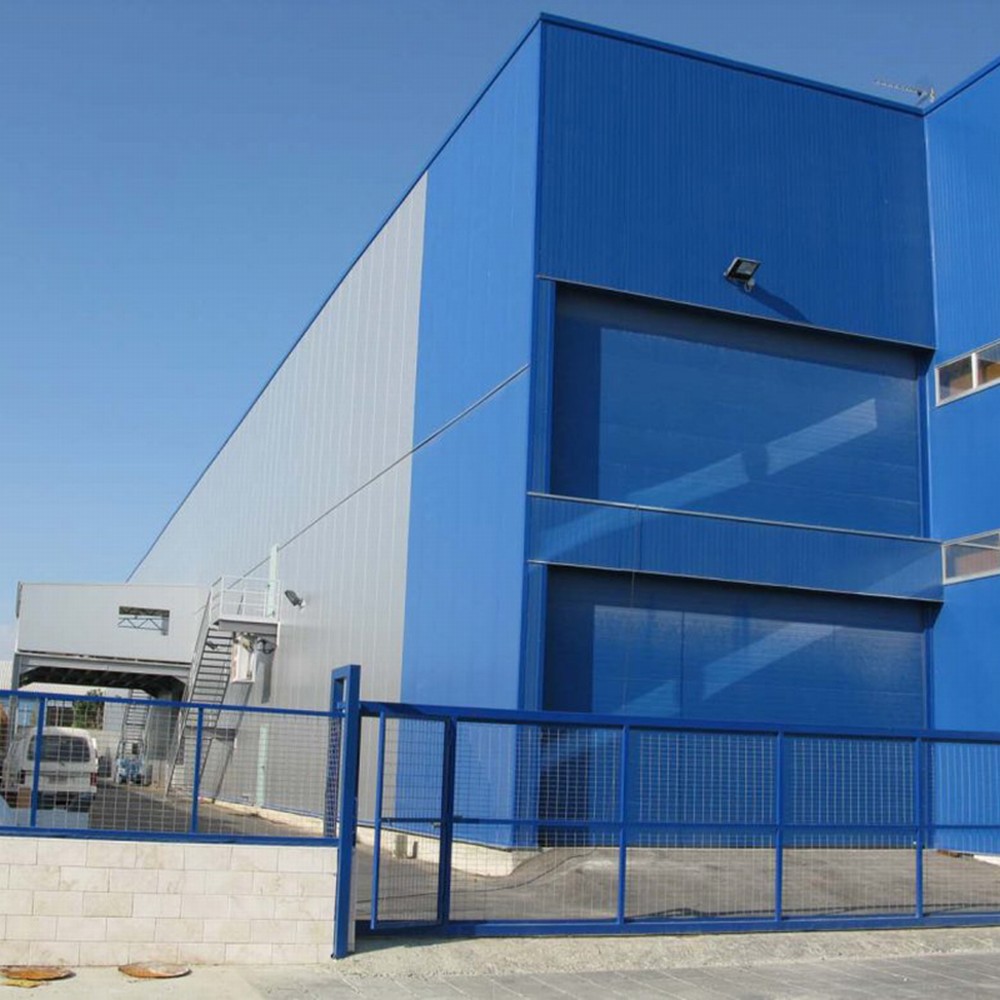

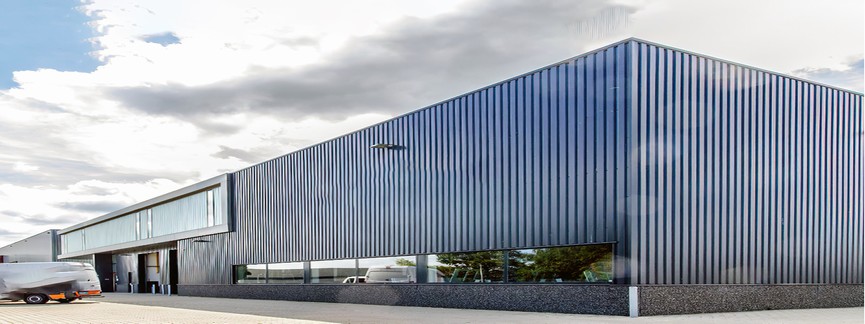

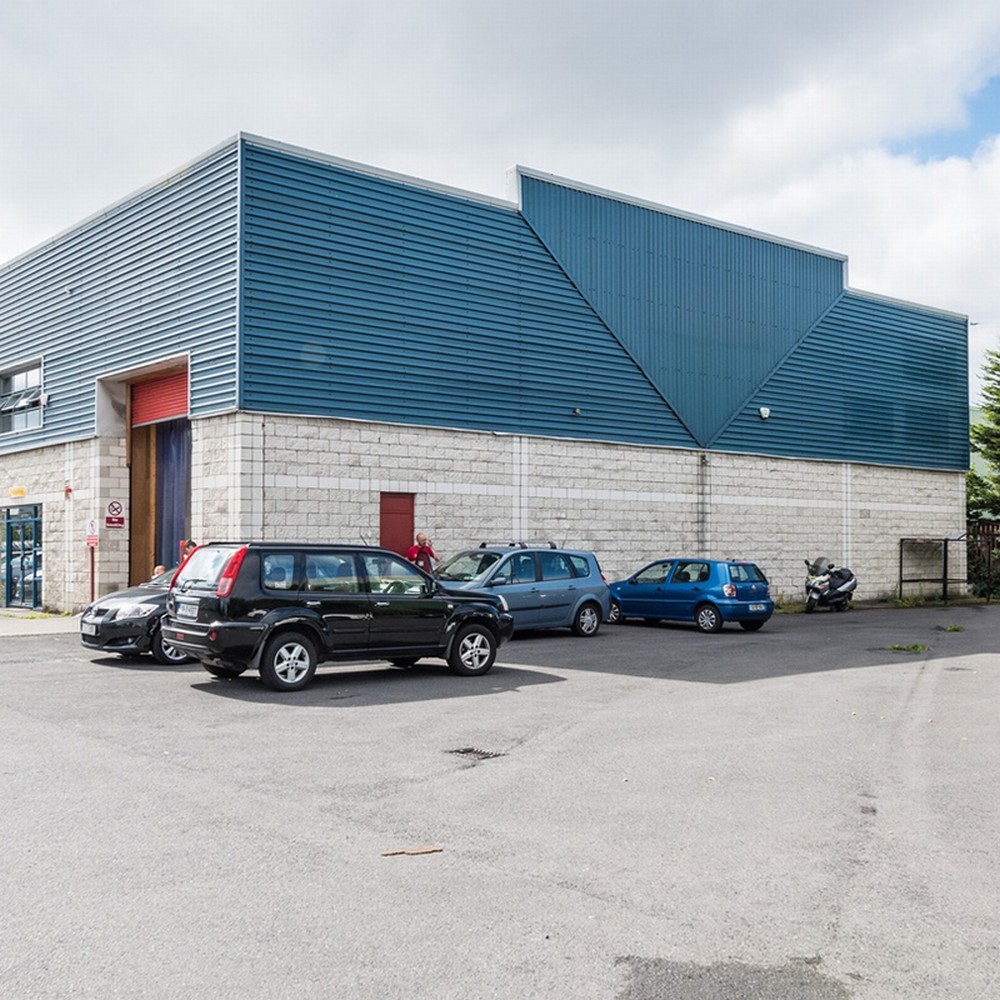

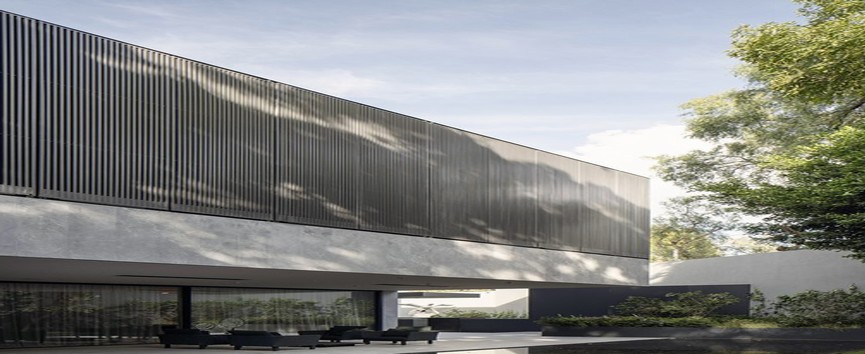

4:Interior Corrugated Metal Wall Panels for Lining Panels Project Cases

The interior corrugated metal wall panels have been successfully used in various project cases as lining panels. These panels provide a stylish and functional solution for interior spaces, enhancing the aesthetics and performance of the building. With their versatile design, they are suitable for a wide range of applications, including commercial buildings, residential projects, hospitality spaces, and more. Our panels are known for their durability, easy installation, and low maintenance requirements, making them a cost-effective choice for interior design. Whether it's creating a modern industrial look or adding texture and visual interest to a space, our interior corrugated metal wall panels have proven to be a popular and reliable choice in numerous projects.
