1:Parameters for Custom Metal Curtain Wall Sandwich Panels
| Steel Outer Layer | Common T (mm) | Outer Panel Specs 1.0(Aluminum Panel) |
| Inner Panel Specs 0.4-0.6(Coated Steel Panel) | ||
| Common L (mm) | 100-4,000 | |
| Common W (mm) | 300-1,000 | |
| Coating | PVDF | |
| Insulation Core | Core Material | High-density thermal insulation, fireproof and |
| water-repellent rock wool | ||
| VW (kg/m³) | ≥ 120 | |
| Thickness (mm) | 50-150 | |
| TC (w/m·k) | ≤ 0.043 | |
| Fire Rating | Class A | |
| Process | Joint | 4-sided Joint |
| Joint Seam Outlook Width | 20mm | |
| Production Process | Discontinuous Production Process | |
| Center Trim Treatment | Seal Strip or Sealant |

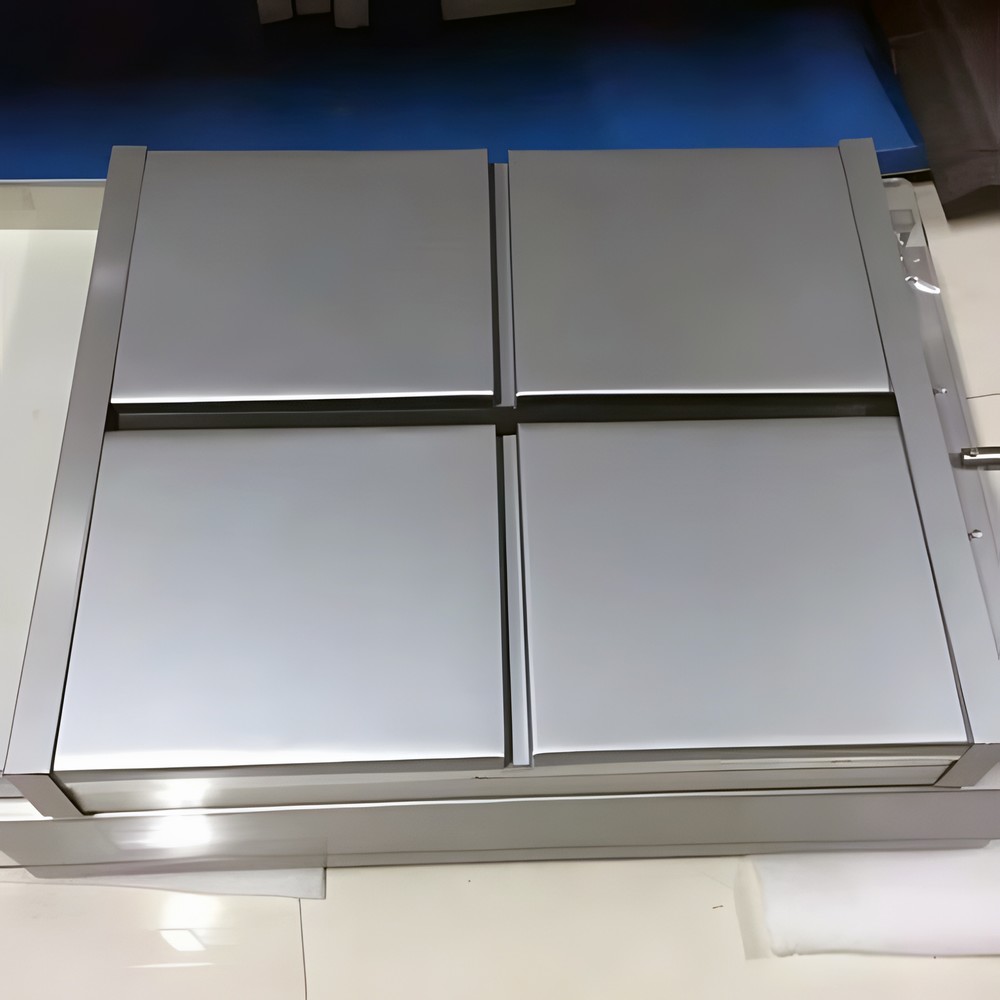

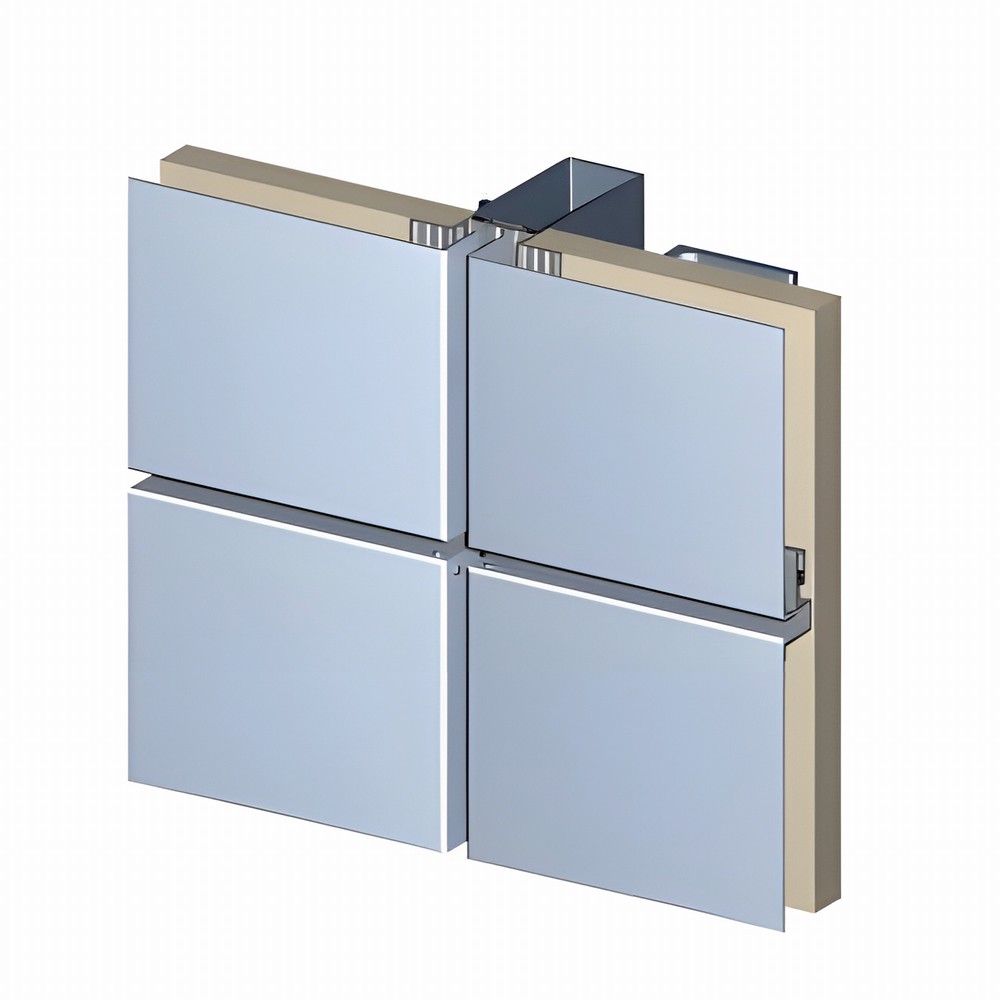

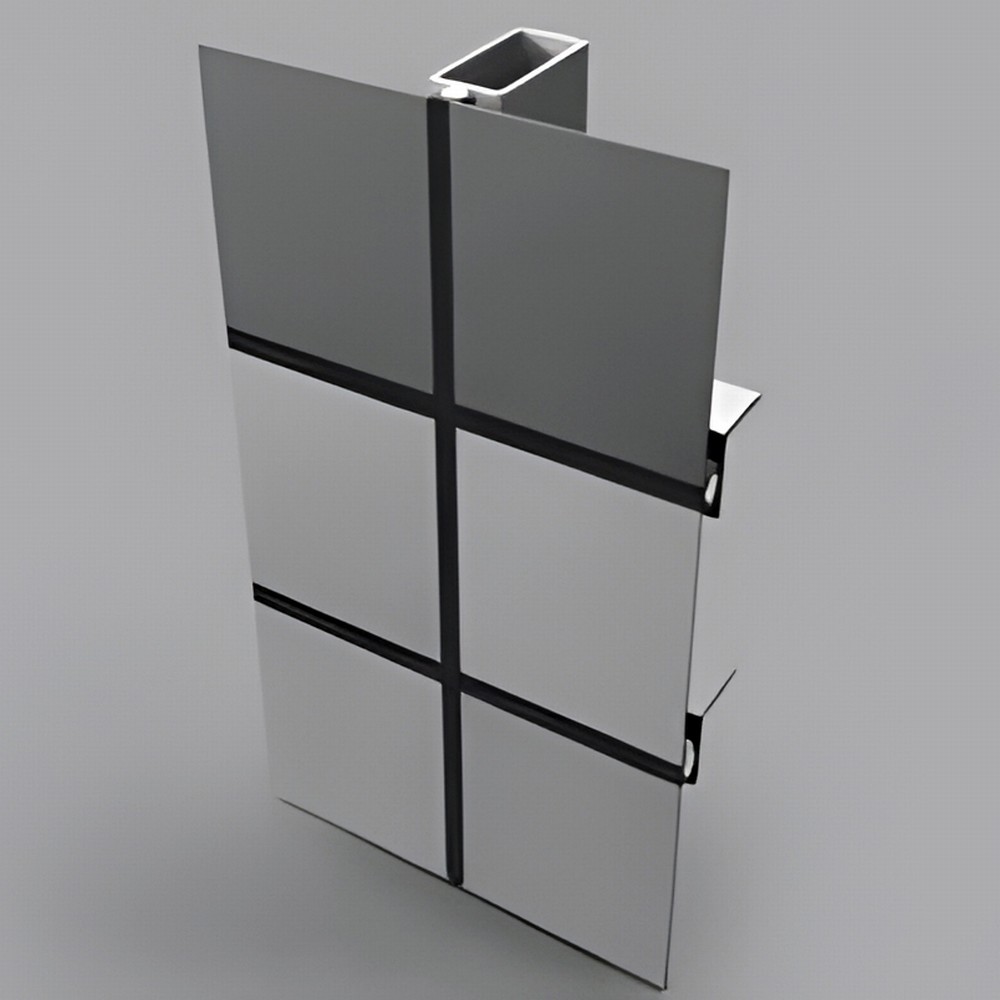

2:Descriptions of Custom Metal Curtain Wall Sandwich Panels
Metal Curtain Wall Sandwich Panels feature a prefabricated four-sided protective modular construction, ensuring excellent structural waterproofing and airtightness. These panels effectively protect the core material, preventing water leakage caused by poor sealing. With their integrated design, they eliminate the need for complicated processes involving multiple layers of materials and time-consuming construction. Metal Curtain Wall Sandwich Panels provide a cost-effective and efficient solution for creating visually appealing and functional curtain walls. They offer durability, weather resistance, and enhanced thermal performance, making them suitable for a wide range of architectural projects. Experience the benefits of these panels in enhancing the aesthetics and performance of your building.

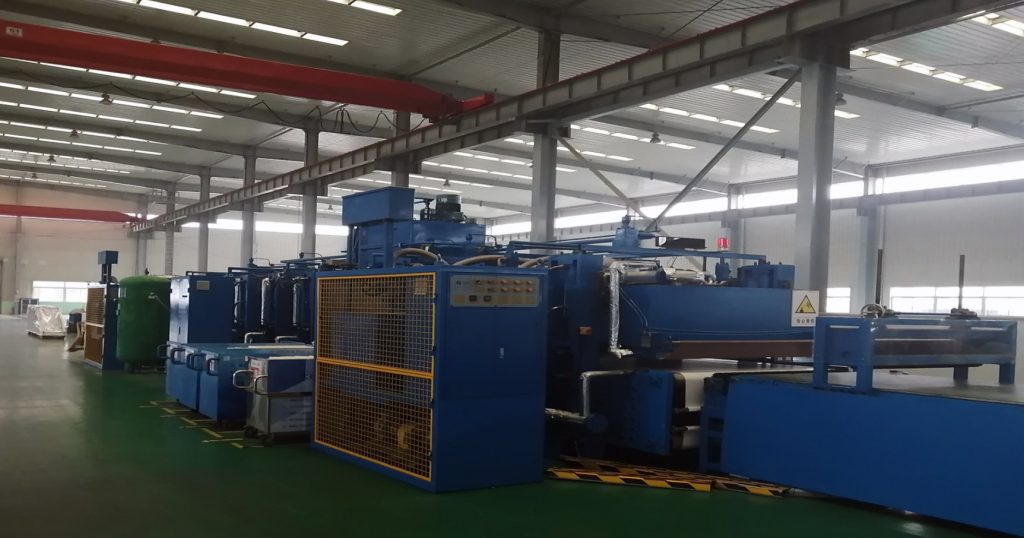

3:Production Machine of Metal Curtain Wall Sandwich Panels
The electric feeding and veneer hot press machine is a renowned domestic brand and a leading player in the industry in terms of processing dimensions. This machine is specifically designed for the production of Metal Curtain Wall Sandwich Panels. With its advanced technology and efficient operation, it ensures precise feeding and accurate hot pressing, resulting in high-quality panels. The machine's industry-leading processing dimensions allow for the production of panels with custom sizes and shapes to meet specific project requirements. Experience the reliability and performance of this electric feeding and veneer hot press machine in manufacturing Metal Curtain Wall Sandwich Panels.

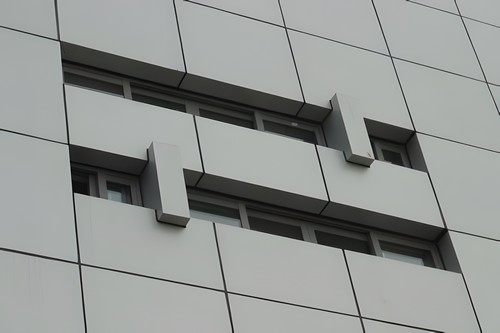

4: Metal Curtain Wall Sandwich Panels Installation Site

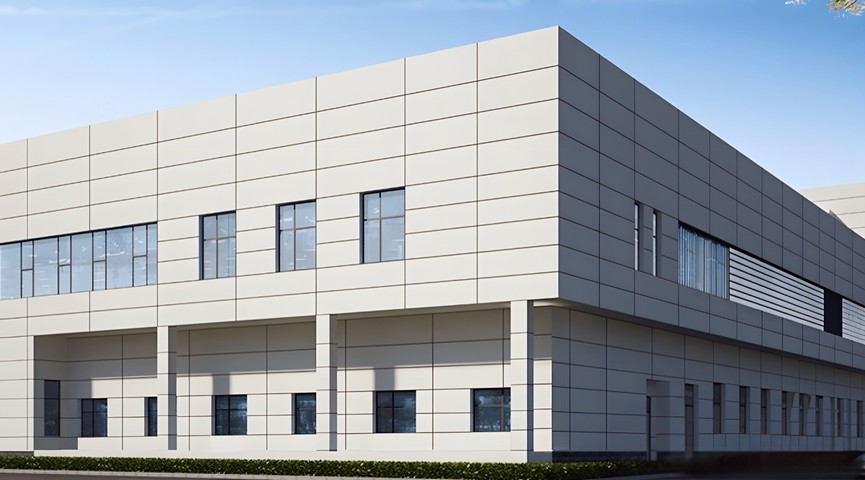

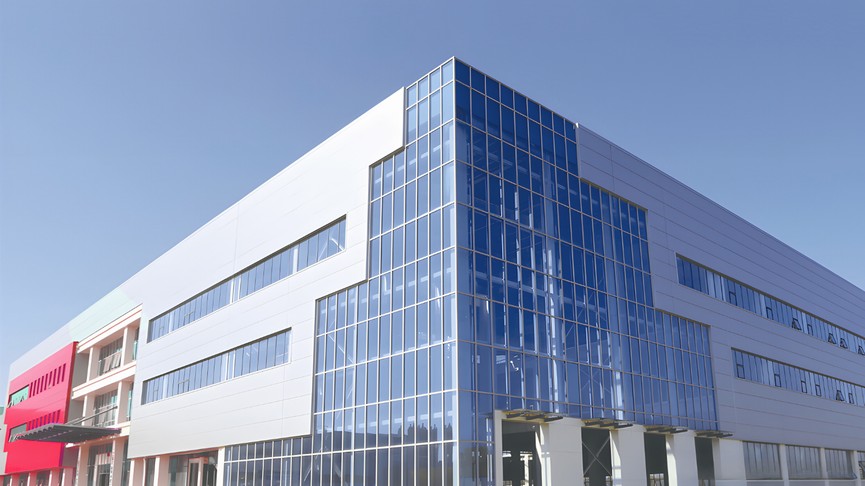

5:Metal Curtain Wall Sandwich Panels Project Cases
Metal Curtain Wall Sandwich Panels project cases show the versatility and aesthetic appeal of our panels in various architectural designs. From commercial buildings to residential complexes, our panels have been successfully implemented, providing outstanding performance and visual impact. Experience the seamless integration of form and function, as our panels enhance the building envelope with their structural integrity, thermal insulation, and weather resistance. With a wide range of colors and finishes available, our Metal Curtain Wall Sandwich Panels offer endless design possibilities to create unique and eye-catching facades. Discover the success stories of our satisfied clients and be inspired for your next architectural project.
